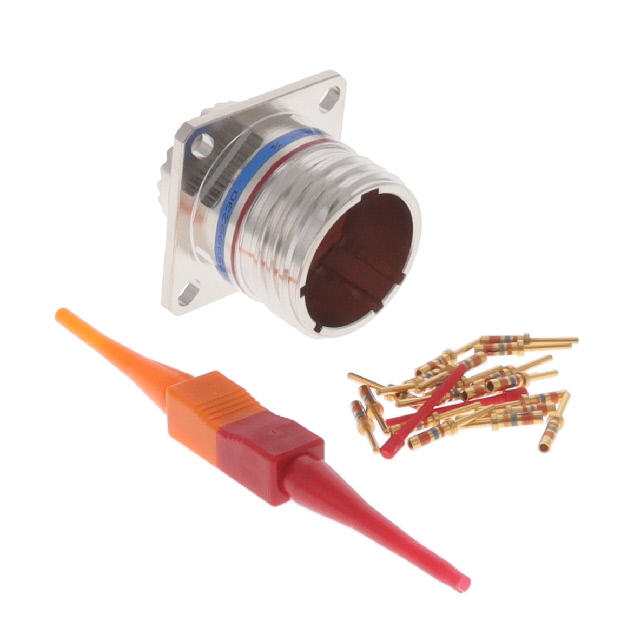

D38999/20FD18PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 18POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20FD18PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 18POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20FD18PN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	18
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	18
Shell Size - Insert [Min]	15
Shell Size, MIL	D
Shielding	Shielded
Termination	Crimp

D38999/20FD Series

Part	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Qualification	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Termination	Orientation	Shell Size, MIL	Shell Material	Shell Finish	Grade	Contact Finish - Mating	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Applications	Contact Material	Color	Connector Type	Mounting Feature	Number of Positions	Current Rating (Amps)	Housing Color	Contact Size	Type	Note	Contact Type	Contact Shape	Contact Size	Contact Size	Insert Material
Amphenol Aerospace Operations D38999/20FD18HN	18	15	MIL-DTL-38999 Series III	2.54 çm	100 çin	Environment Resistant	Crimp	N	D	Aluminum	Electroless Nickel	Military	Gold	Metal	-65 ░C	200 °C	Shielded	Aviation Marine Military	Copper Alloy	Silver	Male Pins Receptacle	Flange	18
Amphenol Aerospace Operations D38999/20FD97HN	97	15	MIL-DTL-38999 Series III	2.54 çm	100 çin	Environment Resistant	Crimp	N	D	Aluminum	Electroless Nickel	Military	Gold	Metal	-65 ░C	200 °C	Shielded	Aviation Marine Military	Copper Alloy	Silver	Male Pins Receptacle	Flange	12
Amphenol Aerospace Operations D38999/20FD15HN	15	15	MIL-DTL-38999 Series III	2.54 çm	100 çin	Environment Resistant	Crimp	N	D	Aluminum	Electroless Nickel	Military	Gold	Metal	-65 ░C	200 °C	Shielded	Aviation Marine Military	Copper Alloy	Silver	Male Pins Receptacle	Flange	15
Amphenol Aerospace Operations D38999/20FD18SN	18	15	MIL-DTL-38999 Series III	1.27 µm	50 µin	Environment Resistant	Crimp	N	D	Aluminum	Electroless Nickel	Military	Gold	Metal	-65 ░C	200 °C	Shielded	Aerospace Aviation Marine Military	Copper Alloy	Silver	Receptacle Female Sockets	Flange	18	7.5 A
Amphenol Aerospace Operations D38999/20FD35HA-LC	35	15	MIL-DTL-38999 Series III			Environment Resistant		A	D	Aluminum	Electroless Nickel	Military			-65 ░C	200 °C	Shielded				Receptacle Housing	Flange	37		Silver	22D	For Male Pins	Contacts Not Included	Crimp	Circular
Amphenol Aerospace Operations D38999/20FD97PN	97	15	MIL-DTL-38999 Series III	1.27 µm	50 µin	Environment Resistant	Crimp	N	D	Aluminum	Electroless Nickel	Military	Gold	Metal	-65 ░C	200 °C	Shielded	Aerospace Aviation Marine Military	Copper Alloy	Silver	Male Pins Receptacle	Flange	12	7.5 A 13 A
Amphenol Aerospace Operations D38999/20FD97PN-LC	97	15	MIL-DTL-38999 Series III			Environment Resistant		N	D	Aluminum	Electroless Nickel	Military			-65 ░C	200 °C	Shielded				Receptacle Housing	Flange	12		Silver		For Male Pins	Contacts Not Included	Crimp	Circular	4 8 16 20
Amphenol Aerospace Operations D38999/20FD18PN	18	15	MIL-DTL-38999 Series III	1.27 µm	50 µin	Environment Resistant	Crimp	N	D	Aluminum	Electroless Nickel	Military	Gold	Metal	-65 ░C	200 °C	Shielded	Aerospace Aviation Marine Military	Copper Alloy	Silver	Male Pins Receptacle	Flange	18	7.5 A
Amphenol Aerospace Operations D38999/20FD15BA	15	15	MIL-DTL-38999 Series III			Environment Resistant		A	D	Aluminum	Electroless Nickel	Military		Metal	-65 ░C	200 °C	Shielded				Receptacle Housing	Flange	15		Silver		For Female Sockets	Contacts Not Included	Crimp	Circular		16 20	Thermoplastic
Amphenol Aerospace Operations D38999/20FD97HN-LC	97	15	MIL-DTL-38999 Series III			Environment Resistant		N	D	Aluminum	Electroless Nickel	Military			-65 ░C	200 °C	Shielded				Receptacle Housing	Flange	12		Silver		For Male Pins	Contacts Not Included	Crimp	Circular	4 8 16 20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 203.78
		10	$ 188.84
		25	$ 182.05
		50	$ 180.69

Description

General part information

D38999/20FD Series

18 Position Circular Connector Receptacle, Male Pins Crimp
