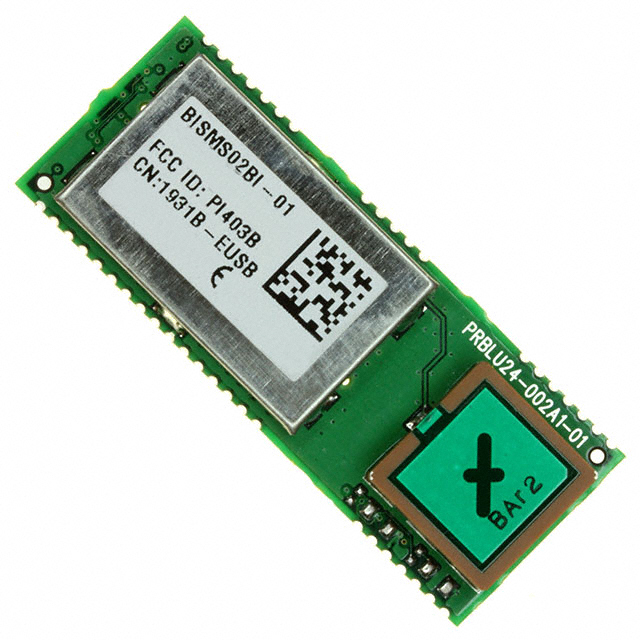

BISMS02BI
ActiveEzurio LLC
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsSelection Guide
BISMS02BI
ActiveEzurio LLC
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
DocumentsSelection Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | BISMS02BI |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 36 mA |
| Current - Transmitting | 36 mA |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 6 dBm |
| Protocol | Bluetooth v2.0, Class 1 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -84 dBm |
| Serial Interfaces | UART |
| Voltage - Supply [Max] | 7 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BISMS02 Series
Bluetooth Bluetooth v2.0, Class 1 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Documents
Technical documentation and resources
