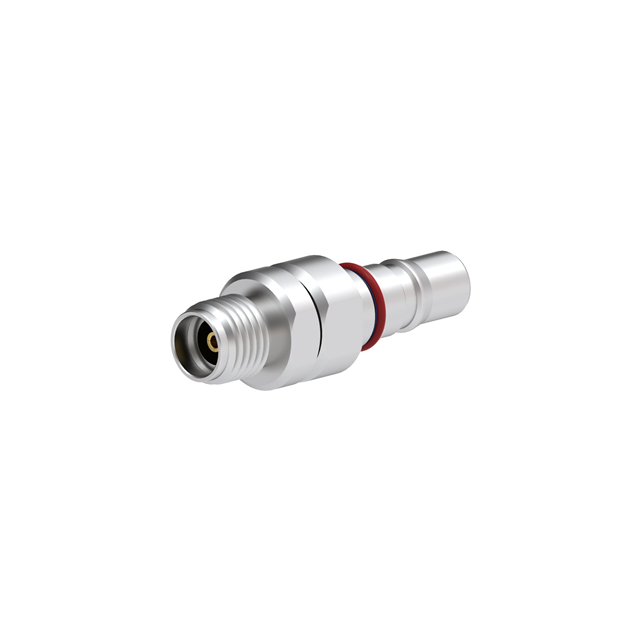

R191946700
ActiveRadiall USA, Inc.
QRE FEMALE - SMA 3.5 FEMALE STRA
Deep-Dive with AI
Search across all available documentation for this part.
R191946700
ActiveRadiall USA, Inc.
QRE FEMALE - SMA 3.5 FEMALE STRA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R191946700 |
|---|---|
| Adapter Series | SMA to QRE |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | Female Socket, QRE Jack |
| Fastening Type | Threaded, Push-Pull |
| Frequency - Max [Max] | 12.4 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -55 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 224.16 | |
Description
General part information
R19194 Series
Adapter Coaxial Connector SMA Jack, Female Socket To QRE Jack, Female Socket 50 Ohms
Documents
Technical documentation and resources
No documents available
