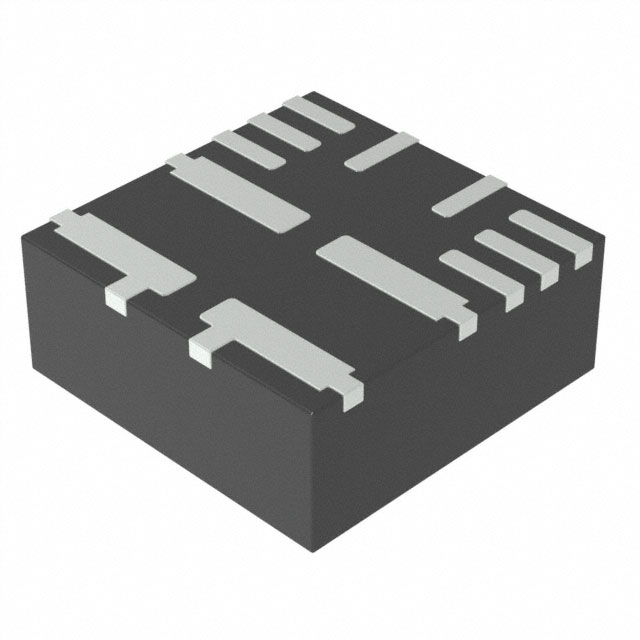

MPM38111GR-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
DC DC CONVERTER 1.8V 1.2V
Deep-Dive with AI
Search across all available documentation for this part.
MPM38111GR-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
DC DC CONVERTER 1.8V 1.2V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPM38111GR-P |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 1 A |
| Current - Output (Max) | 1 A |
| Efficiency | 93 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-PowerLFQFN Module |
| Size / Dimension [x] | 0.16 in |
| Size / Dimension [x] | 4.1 mm |
| Size / Dimension [y] | 4.1 mm |
| Size / Dimension [y] | 0.16 in |
| Size / Dimension [z] | 1.5 mm |
| Size / Dimension [z] | 0.06 " |
| Supplier Device Package | 14-QFN (4x4) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output 1 | 1.8 V |
| Voltage - Output 2 | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.77 | |
| 10 | $ 3.39 | |||
| 25 | $ 3.20 | |||
| 100 | $ 2.78 | |||
| 250 | $ 2.63 | |||
| Digi-Reel® | 1 | $ 3.77 | ||
| 10 | $ 3.39 | |||
| 25 | $ 3.20 | |||
| 100 | $ 2.78 | |||
| 250 | $ 2.63 | |||
| Tape & Reel (TR) | 500 | $ 2.36 | ||
| 1000 | $ 1.99 | |||
| 2500 | $ 1.89 | |||
| 5000 | $ 1.82 | |||
Description
General part information
MPM38111 Series
Non-Isolated PoL Module DC DC Converter 2 Output 1.8V 1.2V 1A, 1A 2.7V - 6V Input
Documents
Technical documentation and resources
No documents available
