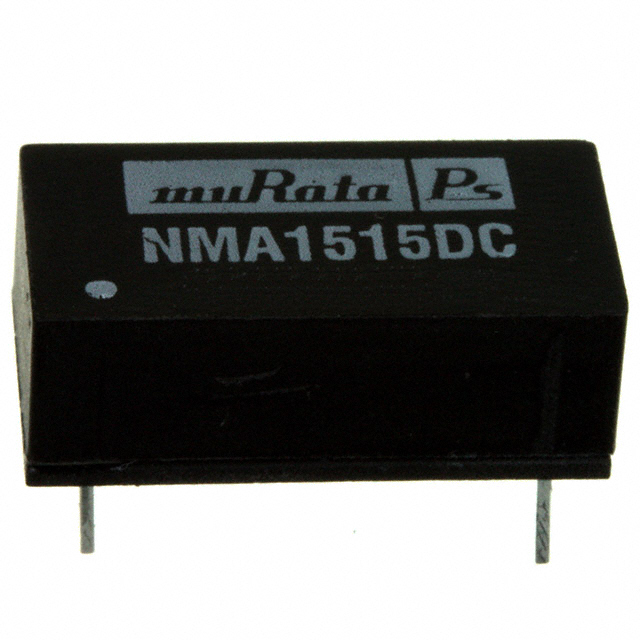

NMA1515DC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-15V 1W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-15V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 2	Package / Case	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Efficiency	Voltage - Output 1	Applications	Current - Output (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Input (Min) [Min]	Number of Outputs	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Murata Power Solutions Inc. NMA1515DC	-15 V	14-DIP Module 6 Leads	Isolated Module	0.77 in 19.6 mm	0.27 " 6.9 mm	0.39 " 9.9 mm	16.5 V	80 %	15 V	ITE (Commercial)	33 mA	85 °C	-40 °C	1000 V	13.5 V	2	Through Hole
Murata Power Solutions Inc. NMA1512SC	-12 V	7-SIP Module 5 Leads	Isolated Module	0.77 in	0.39 in	0.24 "	16.5 V	78 %	12 V	ITE (Commercial)		85 °C	-40 °C	1000 V	13.5 V	2	Through Hole	9.9 mm	6.1 mm	19.6 mm	42 mA	42 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 13.5V - 16.5V Input
