109BM24MC2-1

Active

Sanyo Denki America Inc.

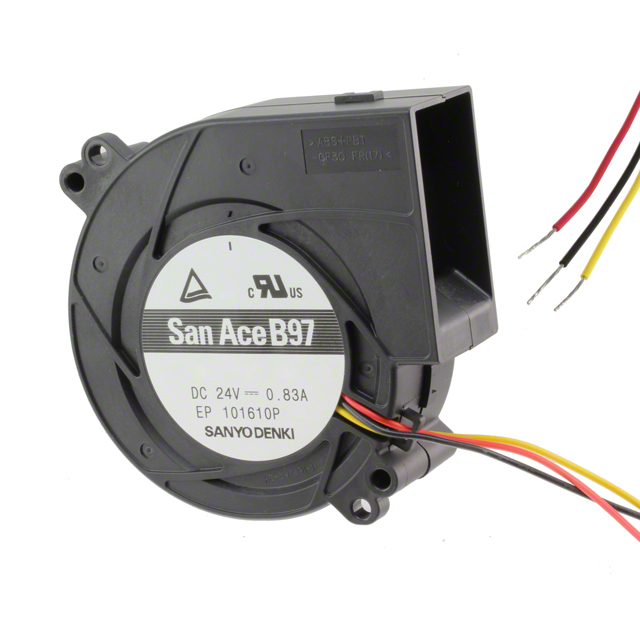

FAN BLOWER 97.2X33MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN BLOWER 97.2X33MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	109BM24MC2-1

Air Flow	0.574 m³/min
Air Flow	20.5 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	150 mA
Fan Type	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	3.6 W
RPM	2700 RPM
Size / Dimension [x]	97.2 mm
Size / Dimension [y]	94.4 mm
Static Pressure	119.1 Pa
Static Pressure	0.478 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	12 VDC
Weight	0.386 lb
Weight	175.09 g
Width [y]	33 mm

Part	Noise	Bearing Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Approval Agency	Air Flow	Air Flow	Width [y]	Material - Blade	Material - Frame	Lifetime @ Temp.	Voltage - Rated	Fan Type	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Weight	Weight	Power (Watts)	RPM	Features	Size / Dimension	Size / Dimension [z]
Sanyo Denki America Inc. 109BM24HA2-1	48.5 dB(A)	Ball	2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	0.26 A	27.6 VDC	12 VDC	CSA TUV UL	0.703 m³/min	25.1 CFM	33 mm	Plastic	Plastic	40000 Hrs	24 VDC	Blower	94.4 mm	97.2 mm	0.819 in H2O	204 Pa	0.386 lb	175.09 g	6.24 W	3300 RPM
Sanyo Denki America Inc. 109BM24MC2-1		Ball	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	150 mA	27.6 VDC	12 VDC	CSA TUV UL	0.574 m³/min	20.5 CFM	33 mm	Plastic	Plastic	40000 Hrs	24 VDC	Blower	94.4 mm	97.2 mm	0.478 in H2O	119.1 Pa	0.386 lb	175.09 g	3.6 W	2700 RPM	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109BM24HD2-1	48.5 dB(A)	Ball	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	0.26 A	27.6 VDC	12 VDC	CSA TUV UL	0.703 m³/min	25.1 CFM	33 mm	Plastic	Plastic	40000 Hrs	24 VDC	Blower		97.2 mm	0.819 in H2O	204 Pa	0.386 lb	175.09 g	6.24 W	3300 RPM	Locked Rotor Sensor	Rectangular/Rounded	94.5 mm
Sanyo Denki America Inc. 109BM24MA2-1		Ball	2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	150 mA	27.6 VDC	12 VDC	CSA TUV UL	0.574 m³/min	20.5 CFM	33 mm	Plastic	Plastic	40000 Hrs	24 VDC	Blower		97.2 mm	0.478 in H2O	119.1 Pa	0.386 lb	175.09 g	3.6 W	2700 RPM		Rectangular/Rounded	94.5 mm
