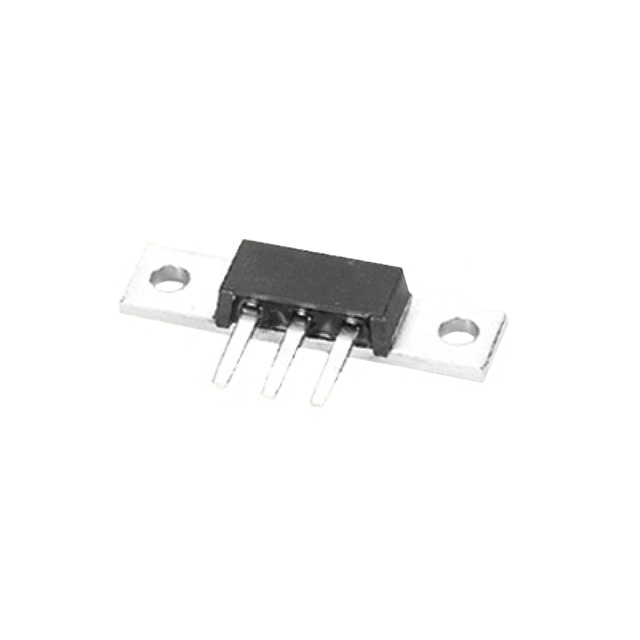

UFT7340M

Obsolete

GeneSiC Semiconductor

DIODE MODULE GP 400V 70A D61-3M

Search across all available documentation for this part.

Obsolete

GeneSiC Semiconductor

DIODE MODULE GP 400V 70A D61-3M

Technical Specifications

Parameters and characteristics for this part

Specification	UFT7340M

Current - Average Rectified (Io) (per Diode)	70 A
Current - Reverse Leakage @ Vr	20 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	D61-3M
Reverse Recovery Time (trr)	75 ns
Speed	200 mA, 500 ns
Supplier Device Package	D61-3M
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Diode Configuration	Voltage - Forward (Vf) (Max) @ If	Speed	Current - Reverse Leakage @ Vr	Mounting Type	Supplier Device Package	Package / Case	Current - Average Rectified (Io) (per Diode)	Technology
GeneSiC Semiconductor UFT7340M	400 V	150 °C	-55 °C	75 ns	1 Pair Common Cathode	1.3 V	200 mA 500 ns	20 µA	Chassis Mount	D61-3M	D61-3M	70 A	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 1 Pair Common Cathode 400 V 70A Chassis Mount D61-3M

Technical documentation and resources

No documents available
