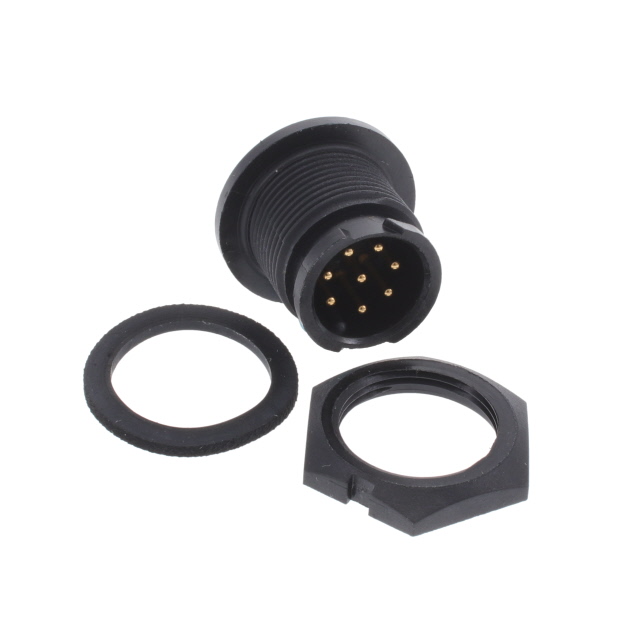

W7282-8PG-P-300

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W7282-8PG-P-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Contact Finish - Mating	Mounting Feature	Color	Features	Connector Type	Primary Material	Shielding	Backshell Material, Plating	Ingress Protection	Fastening Type	Voltage Rating	Current Rating (Amps)	Orientation	Number of Positions	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insert Material
Conxall/Switchcraft W7282-8PG-P-300	Gold	Bulkhead - Front Side Nut	Black	UV Resistant	Male Pins Receptacle	Plastic	Unshielded	Thermoplastic	IP66 IP67 IP68	Bayonet Lock	300 VAC	Varies by Wire Gauge	Keyed	8	Automotive Communication Systems Instrumentation	85 °C	-40 °C	Copper Alloy	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 14.23

General part information

8 Position Circular Connector Receptacle, Male Pins Solder Cup
