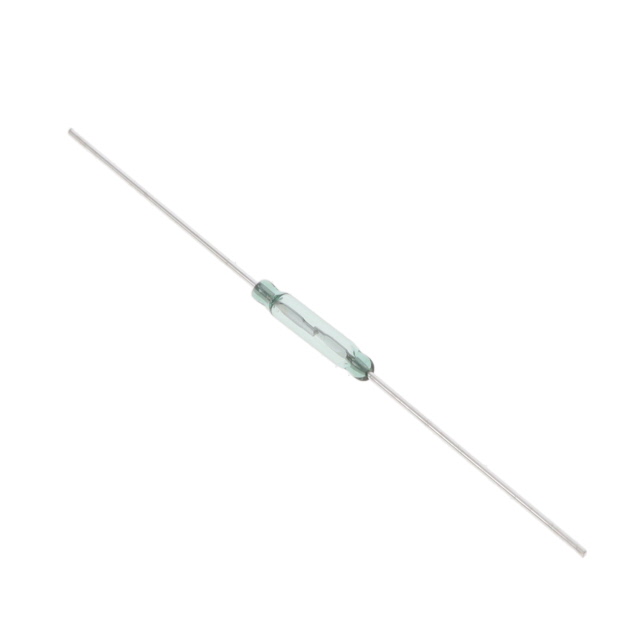

RI-69GP1520
ActiveComus International
SWITCH REED SPST-NO 700MA 140V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RI-69GP1520
ActiveComus International
SWITCH REED SPST-NO 700MA 140V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RI-69GP1520 |
|---|---|
| Capacitance | 0.25 pF |
| Circuit | SPST-NO |
| Current - Carry | 1 A |
| Current - Switching | 700 mA, 1 A |
| Length - Overall [x] | 46 mm |
| Length - Overall [x] | 1.811 in |
| Mounting Type | Through Hole |
| Operate Range [Max] | 20 AT |
| Operate Range [Min] | 15 |
| Operate Time | 0.15 ms |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -55 °C |
| Power - Rated | 20 W |
| Release Range [Max] | 16 AT |
| Release Range [Min] | 3 AT |
| Release Time | 0.02 ms |
| Size - Body [diameter] | 1.8 mm |
| Size - Body [diameter] | 0.071 in |
| Size - Body [x] | 0.39 in |
| Size - Body [x] | 9.91 mm |
| Termination Style | Axial |
| Type | Glass Body Reed |
| Voltage - Switching AC [custom] | 140 V |
| Voltage - Switching DC | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.97 | |
| 10 | $ 0.91 | |||
| 25 | $ 0.81 | |||
| 50 | $ 0.77 | |||
| 100 | $ 0.73 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.61 | |||
| 2000 | $ 0.57 | |||
| 6000 | $ 0.55 | |||
Description
General part information
RI-69GP Series
Glass Body Reed Switch SPST-NO 15 ~ 20AT Operate Range 20W 700mA (AC), 1A (DC) 140 V Through Hole
