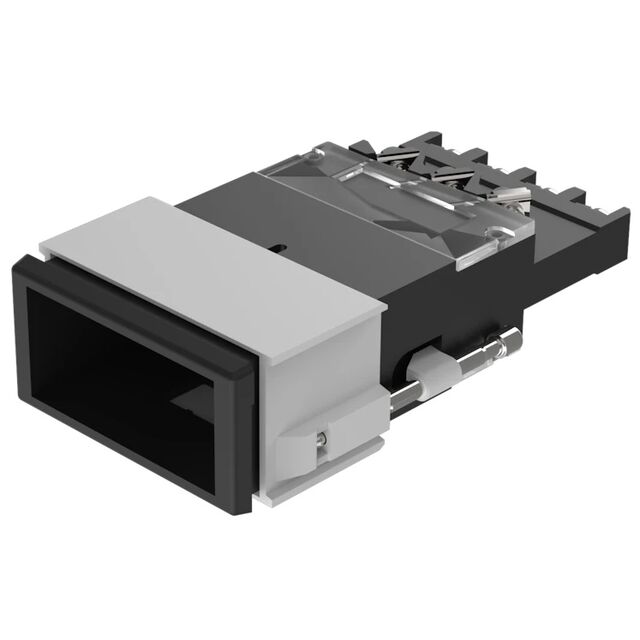

03-621.011

Active

EAO

SWITCH PB DPDT 10A 400V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPDT 10A 400V

Technical Specifications

Parameters and characteristics for this part

Specification	03-621.011

Actuator Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)
Circuit	DPDT
Current Rating (Amps)	10 A
Ingress Protection	IP40
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	41.2 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	On-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	400 V

Part	Actuator Marking	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Voltage Rating - AC	Mounting Type	Termination Style	Circuit	Current Rating (Amps)	Type	Actuator Type	Mechanical Life
EAO 03-621.011	No Marking	On-Mom	55 °C	-25 °C	41.2 mm	21.2 mm	IP40	400 V	Panel Mount Front	Screw Terminal	DPDT	10 A	Standard	Rectangular Button (Not Included)	2000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Panel Mount, Front
