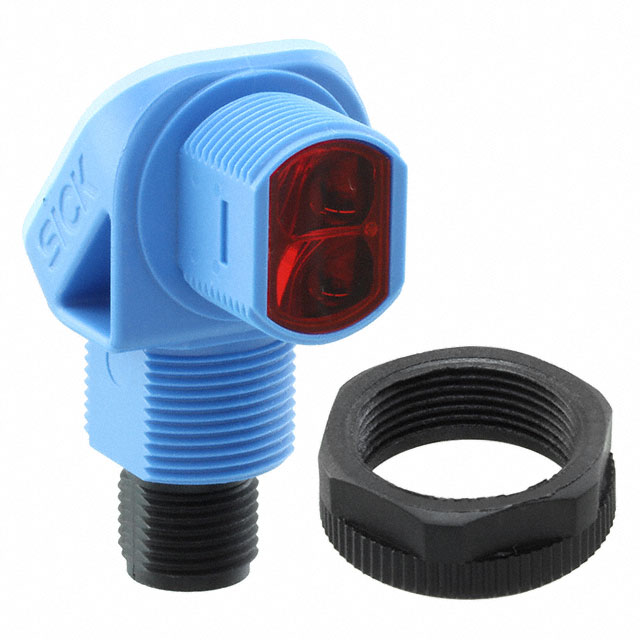

1044706
ObsoleteSICK, Inc.
SENSOR RETROREFLCTV 3M NPN DO/LO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1044706
ObsoleteSICK, Inc.
SENSOR RETROREFLCTV 3M NPN DO/LO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1044706 |
|---|---|
| Connection Method | Connector, 4POS, M12 |
| Ingress Protection | IP67 |
| Light Source | Red LED |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Sensing Distance [Max] | 118.11 in |
| Sensing Distance [Max] | 3 m |
| Sensing Distance [Min] | 100 mm |
| Sensing Distance [Min] | 3.937 " |
| Sensing Method | Retroreflective |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EL3-E Series
Retroreflective Optical Sensor 3.937" ~ 118.110" (100mm ~ 3m) NPN - Dark-ON/Light-ON - Selectable
Documents
Technical documentation and resources
