C3DPS-4018M

Active

CW Industries

IDC CABLE - CKR40S/AE40M/CPC40S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR40S/AE40M/CPC40S

Technical Specifications

Parameters and characteristics for this part

Specification	C3DPS-4018M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to PCB
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Features	Polarizing Key, Strain Relief
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	40
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded
Usage	Board In

Part	Length [x]	Length [x]	Usage	Cable Termination	Pitch - Connector	Pitch - Connector	Features	Connector Type	Number of Positions	Shielding	Color	Contact Finish	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length
CW Industries C3DPS-4018M	457.2 mm	1.5 ft	Board In	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Socket to PCB	40	Unshielded	Multiple Ribbon	Tin	0.05 "	1.27 mm	2.54 µm	100 µin
CW Industries C3DPS-4006M			Board In	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Socket to PCB	40	Unshielded	Multiple Ribbon	Tin	0.05 "	1.27 mm	2.54 µm	100 µin	152.4 mm	6 "	0.5 '
CW Industries C3DPS-4036M	914.4 mm	3 ft	Board In	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Socket to PCB	40	Unshielded	Multiple Ribbon	Tin	0.05 "	1.27 mm	2.54 µm	100 µin
CW Industries C3DPS-4018G	457.2 mm	1.5 ft	Board In	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Socket to PCB	40	Unshielded		Tin	0.05 "	1.27 mm	2.54 µm	100 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

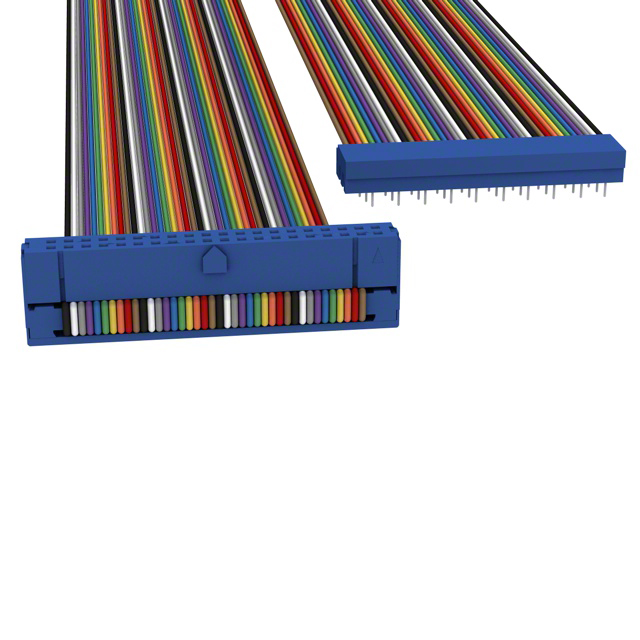

40 Position Cable Assembly Rectangular Socket to PCB 1.50' (457.20mm)
