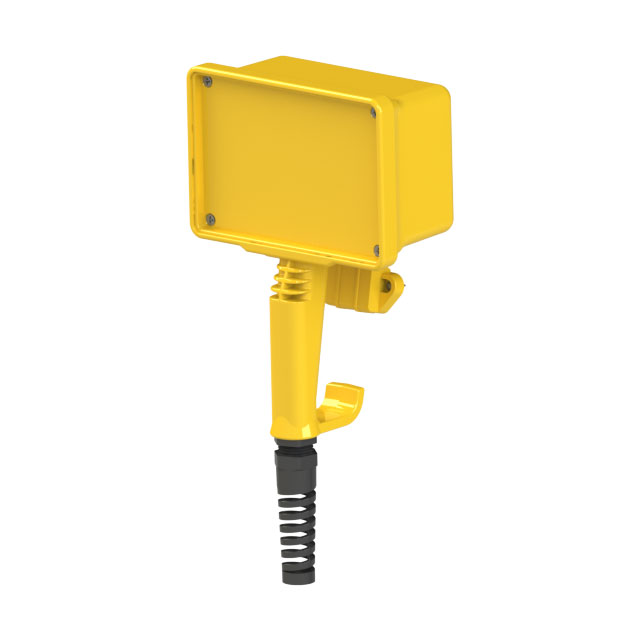

P30,YL

Active

Serpac

ENCLOSURE YLW 6.62"L X 4.640"W

Search across all available documentation for this part.

Active

Serpac

ENCLOSURE YLW 6.62"L X 4.640"W

Technical Specifications

Parameters and characteristics for this part

Specification	P30,YL

Area (L x W)	30.7 in²
Area (L x W)	198 cm²
Color	Yellow
Container Type	Enclosure
Design	Cover Included
Height [z]	3.51 in
Height [z]	89.15 mm
Material Flammability Rating	UL94 HB
Ratings	IP66, NEMA 4X
Size / Dimension [x]	6.62 in
Size / Dimension [x]	168.15 mm
Size / Dimension [y]	117.86 mm
Size / Dimension [y]	4.64 "
Thickness [custom]	9.14 mm
Thickness [custom]	0.36 in

Part	Design	Color	Material Flammability Rating	Thickness [custom]	Thickness [custom]	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Container Type
Serpac P30,YL	Cover Included	Yellow	UL94 HB	9.14 mm	0.36 in	IP66 NEMA 4X	117.86 mm	6.62 in	4.64 "	168.15 mm	3.51 in	89.15 mm	30.7 in²	198 cm²	Enclosure

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosure Yellow Cover Included 6.620" L x 4.640" W (168.15mm x 117.86mm) X 3.510" (89.15mm)
