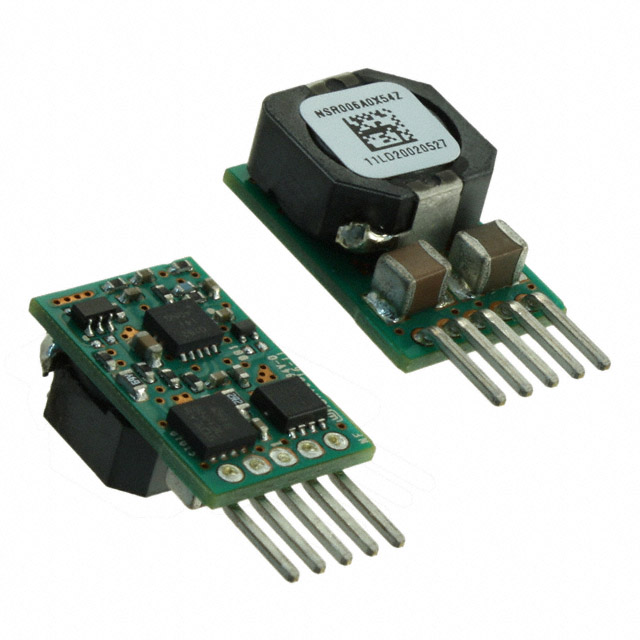

NSR010A0X4Z
ActiveOmniOn Power™
DC DC CONVERTER 0.6-6V 60W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NSR010A0X4Z
ActiveOmniOn Power™
DC DC CONVERTER 0.6-6V 60W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NSR010A0X4Z |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 10 A |
| Efficiency | 93.6 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-SIP Module |
| Power (Watts) | 60 W |
| Size / Dimension [x] | 0.41 " |
| Size / Dimension [x] | 10.4 mm |
| Size / Dimension [y] | 0.27 in |
| Size / Dimension [y] | 6.9 mm |
| Size / Dimension [z] | 16.5 mm |
| Size / Dimension [z] | 0.65 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 6 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 15.55 | |
| 5 | $ 15.43 | |||
| 10 | $ 15.31 | |||
| 25 | $ 15.08 | |||
| 40 | $ 14.61 | |||
| 80 | $ 13.19 | |||
| 315 | $ 12.96 | |||
| 630 | $ 12.72 | |||
Description
General part information
NSR010 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 6V 10A 4.5V - 14V Input
Documents
Technical documentation and resources
