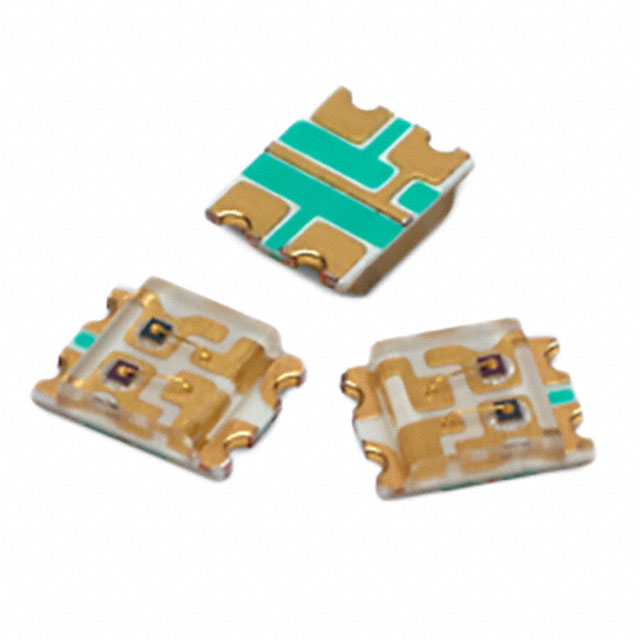

HSMF-C172
ActiveBroadcom Limited
LED ORANGE/YLW-GRN DIFF 0605 SMD
Deep-Dive with AI
Search across all available documentation for this part.
HSMF-C172
ActiveBroadcom Limited
LED ORANGE/YLW-GRN DIFF 0605 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMF-C172 |
|---|---|
| Color | Orange, Yellow-Green |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 0.4 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 45 mcd, 45 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0605 (1613 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 0605 |
| Viewing Angle | 140 ° |
| Wavelength - Dominant | 605 nm, 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.12 | |
| Digi-Reel® | 1 | $ 1.12 | ||
| Tape & Reel (TR) | 12000 | $ 0.36 | ||
Description
General part information
HSMF-C172 Series
Orange, Yellow-Green 605nm Orange, 570nm Yellow-Green LED Indication - Discrete 2V Orange, 2V Yellow-Green 0605 (1613 Metric)
