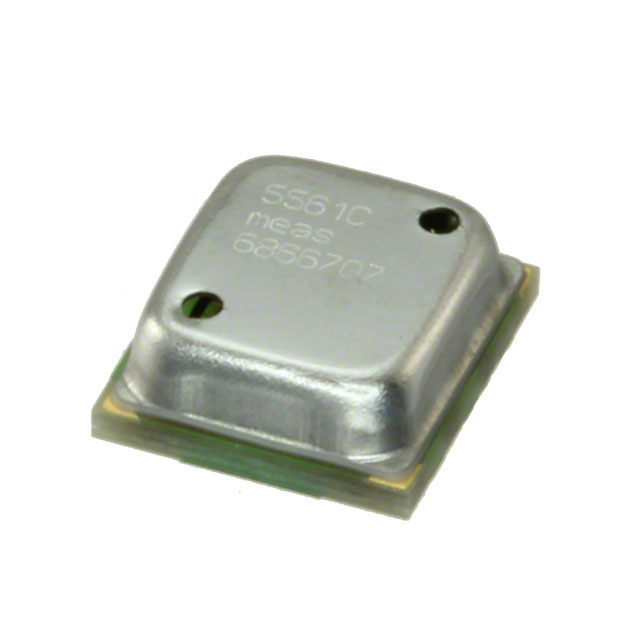

325561000-00

Obsolete

TE Connectivity Measurement Specialties

SENSOR 15.95PSIA 16BIT

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR 15.95PSIA 16BIT

Technical Specifications

Parameters and characteristics for this part

Part	Port Style	Termination Style	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Mounting Type	Output	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Applications	Maximum Pressure	Maximum Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]
TE Connectivity Measurement Specialties 325561000-00	No Port	SMD (SMT) Tab	15.95 PSI	0.15 PSI	110 kPa	1 kPa	Surface Mount	16 b	SPI	85 °C	-40 °C	8-SMD Module	Board Mount	500 kPa	72.52 PSI	2.2 V	3.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 0.15PSI ~ 15.95PSI (1kPa ~ 110kPa) Absolute 16 b 8-SMD Module

Technical documentation and resources
