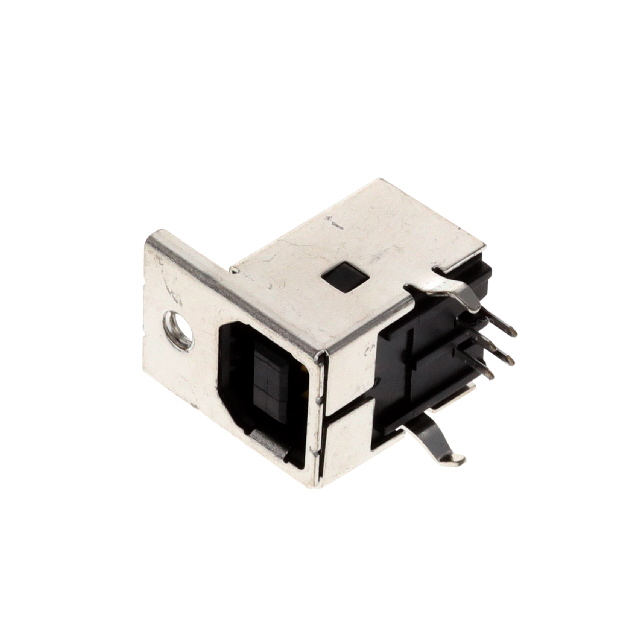

GSB22121WCEU
ActiveAmphenol ICC (Commercial Products)
USB2.0, B, RIGH ANGLE, DIP, W/ S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSB22121WCEU
ActiveAmphenol ICC (Commercial Products)
USB2.0, B, RIGH ANGLE, DIP, W/ S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GSB22121WCEU |
|---|---|
| Connector Type | USB-B |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Receptacle |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Feature | Vertical, Flag |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.26 | |
| 10 | $ 1.07 | |||
| 25 | $ 1.01 | |||
| 40 | $ 0.80 | |||
| 50 | $ 0.96 | |||
| 100 | $ 0.91 | |||
| 300 | $ 0.84 | |||
| 500 | $ 0.81 | |||
| 1000 | $ 0.77 | |||
| 2500 | $ 0.73 | |||
Description
General part information
GSB22121 Series
USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
