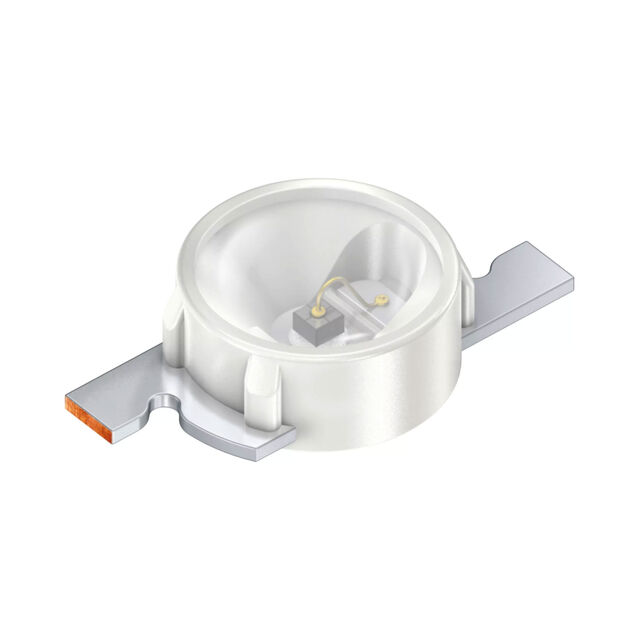

LT PWSG-BACA-36-N626-20-S
Activeams-OSRAM USA INC.
LED GREEN CLEAR SMD BOTTOM ENT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LT PWSG-BACA-36-N626-20-S
Activeams-OSRAM USA INC.
LED GREEN CLEAR SMD BOTTOM ENT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LT PWSG-BACA-36-N626-20-S |
|---|---|
| Color | Green |
| Current - Test | 20 mA |
| Height (Max) [Max] | 0.87 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.6 mm |
| Lens Transparency | Clear |
| Mounting Type | Surface Mount, Bottom Entry |
| Package / Case | 2-SMD, Flat Leads |
| Size / Dimension [x] | 3.4 mm |
| Size / Dimension [y] | 1.9 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Dominant | 528 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 10 | $ 0.41 | |||
| 100 | $ 0.30 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.23 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 10 | $ 0.41 | |||
| 100 | $ 0.30 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.23 | |||
| Tape & Reel (TR) | 3000 | $ 0.21 | ||
| 6000 | $ 0.20 | |||
| 9000 | $ 0.19 | |||
| 15000 | $ 0.19 | |||
| 21000 | $ 0.18 | |||
| 30000 | $ 0.18 | |||
Description
General part information
LTPWSG Series
Green 528nm LED Indication - Discrete 3.2V 2-SMD, Flat Leads
