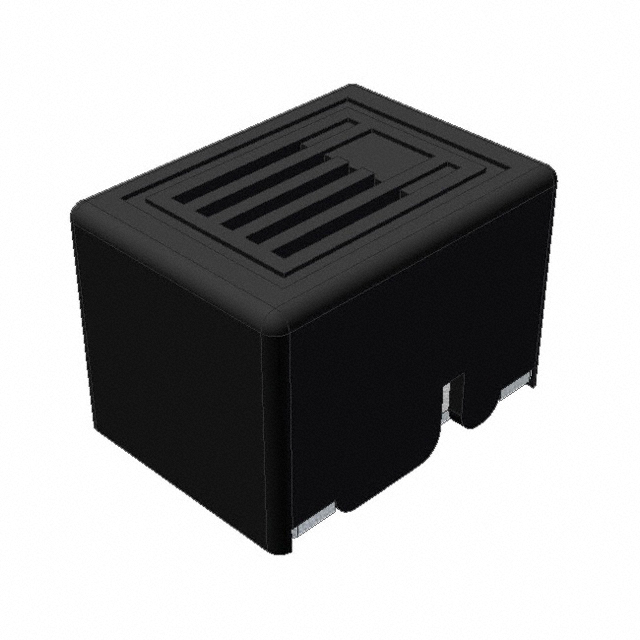

AI-2304-TT-24V-2-R

Active

PUI AUDIO

INDICATOR, ELECTRO-MECHANICAL, CONTINUOUS, 84 DBA, 400 HZ, ACRYLONITRILE BUTADIENE STYRENE

Search across all available documentation for this part.

Active

PUI AUDIO

INDICATOR, ELECTRO-MECHANICAL, CONTINUOUS, 84 DBA, 400 HZ, ACRYLONITRILE BUTADIENE STYRENE

Technical Specifications

Parameters and characteristics for this part

Specification	AI-2304-TT-24V-2-R

Current - Supply	30 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	400 Hz
Height - Seated (Max) [Max]	0.63 in
Height - Seated (Max) [Max]	16 mm
Input Type	DC
Mounting Type	Through Hole
Operating Mode	Single Tone
Port Location	Top
Size / Dimension [x]	23 mm
Size / Dimension [x]	0.906 in
Size / Dimension [y]	17 mm
Size / Dimension [y]	0.669 in
Sound Pressure Level (SPL)	85 dB
Technology	Electromechanical/Magnetic
Termination	PC Pins
Voltage - Rated	24 VDC
Voltage Range [Max]	27 VDC
Voltage Range [Min]	15 VDC

Piezo Buzzers & Audio Indicators 24VDC 30MA 85DBA 400HZ

Part	Technology	Frequency	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Sound Pressure Level (SPL)	Termination	Operating Mode	Voltage Range [Min]	Voltage Range [Max]	Input Type	Voltage - Rated	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Driver Circuitry	Current - Supply	Port Location	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]
PUI AUDIO AI-2304-TT-24V-2-R	Electromechanical/Magnetic	400 Hz	Through Hole	0.63 in	16 mm	85 dB	PC Pins	Single Tone	15 VDC	27 VDC	DC	24 VDC	23 mm	0.906 in	17 mm	0.669 in	Indicator Internally Driven	30 mA	Top
PUI AUDIO AI-2429-TT-12V-R	Piezo	2.9 kHz	Through Hole			95 dB	PC Pins	Single Tone	3 V	20 V	DC	12 VDC					Indicator Internally Driven	8 mA	Top	16.5 mm	16.51 mm	-20 C	70 °C	23.8 mm	0.937 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Piezo Buzzers & Audio Indicators 24VDC 30MA 85DBA 400HZ
