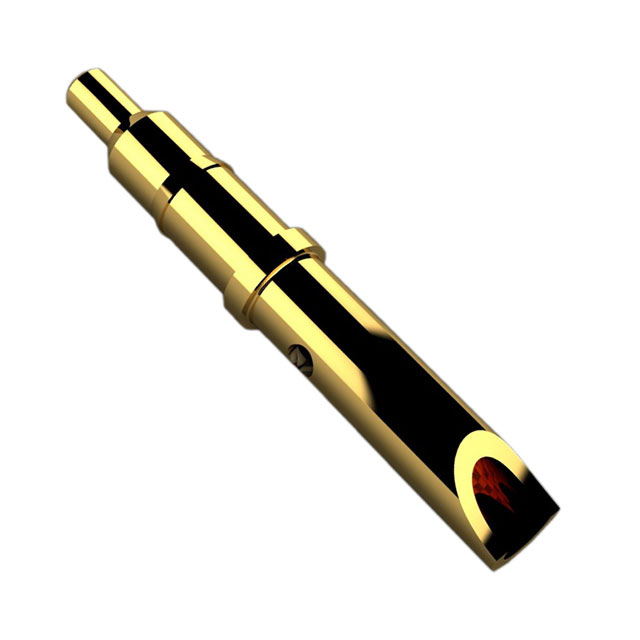

90101-AS

Active

PRECI-DIP SA

CONTACT SPRING LOADED SLDR CUP

Search across all available documentation for this part.

Active

PRECI-DIP SA

CONTACT SPRING LOADED SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	90101-AS

Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Brass Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	3 A
Mating Cycles	40000
Maximum Working Height [Max]	0.222 in
Maximum Working Height [Max]	5.65 mm
Minimum Working Height [Min]	4.4 mm
Minimum Working Height [Min]	0.173 in
Mounting Type	Solder Cup, Through Hole
Operating Force - Initial	20.39 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension [diameter]	0.067 in
Pad Layout Dimension [diameter]	1.7 mm
Plunger Size [diameter]	1.02 mm
Plunger Size [diameter]	0.04 in

Part	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Mating Cycles	Current Rating (Amps)	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Minimum Working Height [Min]	Minimum Working Height [Min]	Mounting Type	Maximum Working Height [Max]	Maximum Working Height [Max]	Operating Force - Initial	Contact Finish	Plunger Size [diameter]	Plunger Size [diameter]
PRECI-DIP SA 90101-AS	0.067 in	1.7 mm	Sleeve & Plunger (Pogo Pins)	10 Áin	0.25 Ám	40000	3 A	Brass Alloy	-55 °C	125 °C	4.4 mm	0.173 in	Solder Cup Through Hole	0.222 in	5.65 mm	20.39 gf	Gold	1.02 mm	0.04 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Contact Spring Through Hole, Solder Cup
