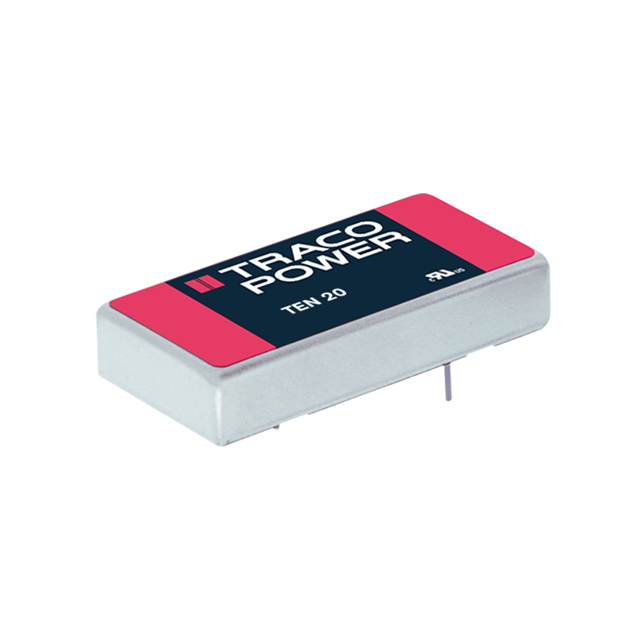

TEN 20-2422

Traco Power

DC DC CONVERTER +/-12V 20W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEN 20-2422

Applications	ITE (Commercial)
Current - Output (Max)	835 mA
Current - Output (Max)	835 mA
Efficiency	89 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

TEN 20 Series

Part	Mounting Type	Efficiency	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Power (Watts)	Features	Voltage - Output 1	Applications	Type	Voltage - Input (Max) [Max]	Package / Case	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Size / Dimension [z]	Size / Dimension [y]
Traco Power TEN 20-4813WIR	Through Hole	89 %	18 V	85 °C	-40 °C	2250 VDC	1.33 A	20 W	OCP OVP Remote On/Off SCP	15 V	ITE (Commercial) Railway	Isolated Module	75 V	6-DIP Module	1	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm
Traco Power TEN 20-4811WIN	Through Hole	88 %	18 V	85 °C	-40 °C	1.5 kV	4 A	20 W	OCP OVP Remote On/Off SCP	5 V	ITE (Commercial)	Isolated Module	75 V	6-DIP Module	1	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm
Traco Power TEN 20-2422	Through Hole	89 %	18 V	85 °C	-40 °C	1.5 kV		20 W	SCP	12 V	ITE (Commercial)	Isolated Module	36 V	6-DIP Module	2	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	835 mA	835 mA	-12 V
Traco Power TEN 20-4811	Through Hole	85 %	36 V	85 °C	-40 °C	1.5 kV	4 A	20 W	SCP	5 V	ITE (Commercial)	Isolated Module	75 V	6-DIP Module	1	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm
Traco Power TEN 20-4813WIN	Through Hole	87 %	18 V	85 °C	-40 °C	1.5 kV	1.33 A	20 W	OCP OVP Remote On/Off SCP	15 V	ITE (Commercial)	Isolated Module	75 V	6-DIP Module	1	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm
Traco Power TEN 20-4823WIR	Through Hole	89 %	18 V	85 °C	-40 °C	2250 VDC		20 W	OCP OVP Remote On/Off SCP	15 V	ITE (Commercial) Railway	Isolated Module	75 V	6-DIP Module	2	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	667 mA	667 mA	-15 V
Traco Power TEN 20-4812WIN	Through Hole	87 %	18 V	85 °C	-40 °C	1.5 kV	1.67 A	20 W	OCP OVP Remote On/Off SCP	12 V	ITE (Commercial)	Isolated Module	75 V	6-DIP Module	1	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm
Traco Power TEN 20-4813WI	Through Hole	81 %	18 V	85 °C	-40 °C	1.5 kV	1.33 A	20 W	OCP OVP Remote On/Off SCP	15 V	ITE (Commercial)	Isolated Module	75 V	7-DIP Module 6 Leads	1					50.8 mm					0.4 in	40.64 mm
Traco Power TEN 20-2412WI	Through Hole	81 %	9 V	85 °C	-40 °C	1.5 kV	1.67 A	20 W	OCP OVP Remote On/Off SCP	12 V	ITE (Commercial)	Isolated Module	36 V	7-DIP Module 6 Leads	1					50.8 mm					0.4 in	40.64 mm
Traco Power TEN 20-2423	Through Hole	89 %	18 V	85 °C	-40 °C	1.5 kV		20 W	SCP	15 V	ITE (Commercial)	Isolated Module	36 V	6-DIP Module	2	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	670 mA	670 mA	-15 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 73.70
		10	$ 62.70
		25	$ 60.62
		50	$ 59.10
		100	$ 57.62
		250	$ 50.80

Description

General part information

TEN 20 Series

Isolated Module DC DC Converter 2 Output 12V -12V 835mA, 835mA 18V - 36V Input
