09JQ-BT
ActiveJST Sales America Inc.

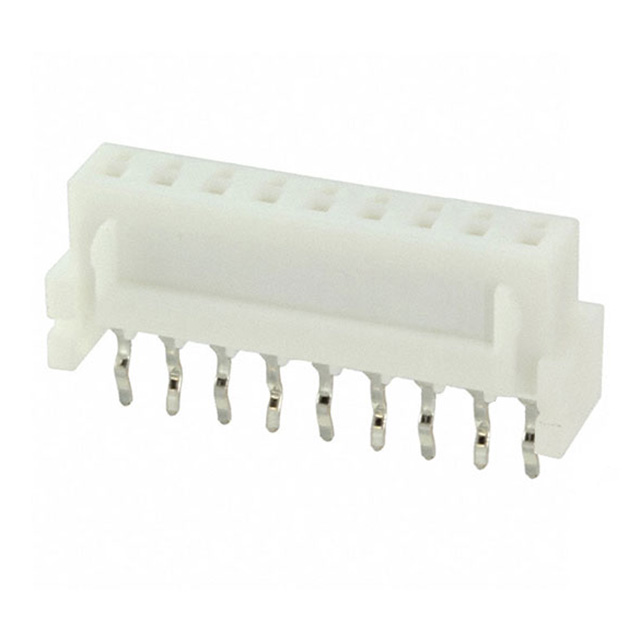

CONN RCPT 9POS 0.098 TIN PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09JQ-BT |
|---|---|
| Connector Type | Receptacle |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Friction Lock |
| Insulation Color | Natural |
| Insulation Height | 9.5 mm |
| Insulation Height | 0.374 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mated Stacking Heights | 11.8 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Termination | Solder, Press-Fit |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.67 | |
| 10 | $ 0.58 | |||
| 25 | $ 0.53 | |||
| 50 | $ 0.50 | |||
| 200 | $ 0.48 | |||
| 400 | $ 0.44 | |||
| 600 | $ 0.42 | |||
| 1000 | $ 0.34 | |||
| 2600 | $ 0.31 | |||
Description
General part information
09JQ Series
9 Position Receptacle Connector 0.098" (2.50mm) Through Hole Tin
