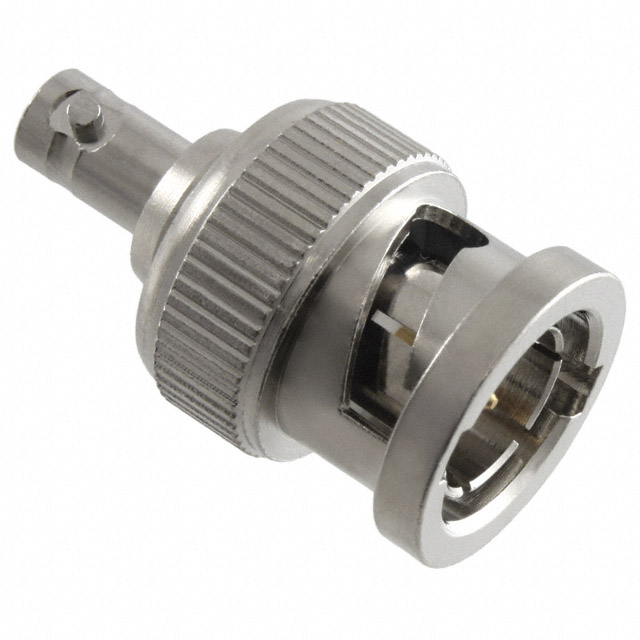

APH-BNCP-HDBNCJ

Active

Amphenol RF

CONN ADAPT HDBNC JACK - BNC PLUG

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT HDBNC JACK - BNC PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	APH-BNCP-HDBNCJ

Adapter Series	HD to BNC, BNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BNC HD Jack, Female Socket
Convert To (Adapter End)	BNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Conversion Type	Body Finish	Center Contact Plating	Adapter Type	Frequency - Max [Max]	Convert From (Adapter End)	Dielectric Material	Mating Cycles	Center Contact Material	Style	Adapter Series	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Convert To (Adapter End)	Body Material	Fastening Type	Impedance	Center Gender
Amphenol RF APH-BNCP-HDBNCJ	Between Series	Nickel	Gold	Plug to Jack	4 GHz	BNC HD Jack Female Socket	Polytetrafluoroethylene (PTFE)	500	Beryllium Copper	Straight	BNC HD to BNC	Free Hanging (In-Line)	-65 ░C	165 °C	BNC Plug Male Pin	Brass	Bayonet Lock	75 Ohms
Amphenol RF APH-BNCP-HDBNCP	Between Series	Nickel	Gold	Plug to Plug	3 GHz	BNC HD Plug Male Pin	Polytetrafluoroethylene (PTFE)	500	Brass	Straight	BNC HD to BNC	Free Hanging (In-Line)	-65 ░C	165 °C	BNC Plug Male Pin	Brass	Bayonet Lock	75 Ohms	Male to Male
Amphenol RF APH-BNCP-FJ	Between Series	Nickel	Gold	Plug to Jack	1 GHz	BNC Plug Male Pin	Polytetrafluoroethylene (PTFE)		Beryllium Copper	Straight	BNC to F	Free Hanging (In-Line)	-65 ░C	165 °C	F Jack Female Socket	Brass	Bayonet Lock Threaded	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC HD Jack, Female Socket To BNC Plug, Male Pin 75 Ohms
