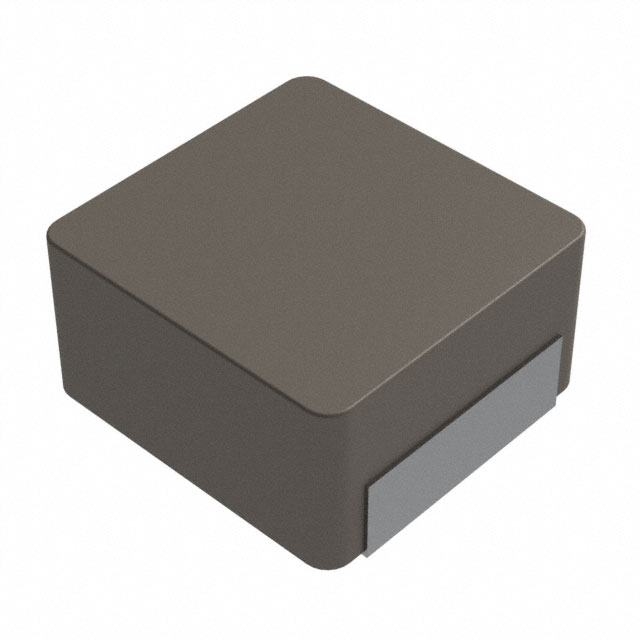

VCHA042A-4R7MS6

Active

Delta Electronics/Cyntec

FIXED IND 4.7UH 4A 53.8MOHM SMD

Search across all available documentation for this part.

Active

Delta Electronics/Cyntec

FIXED IND 4.7UH 4A 53.8MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Current Rating (Amps)	Inductance Frequency - Test	Ratings	Package / Case	Inductance	Mounting Type	Shielding	Tolerance	Current - Saturation (Isat)	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Delta Electronics/Cyntec VCHA042A-4R7MS6	165 °C	-55 °C	Metal	4 A	100 kHz	AEC-Q200	Nonstandard	4.7 ÁH	Surface Mount	Unshielded	20 %	3.2 A	53.8 mOhm	2.1 mm	0.083 "
Delta Electronics/Cyntec VCHA042A-1R0MS6	165 °C	-55 °C	Metal	8.9 A	100 kHz	AEC-Q200	Nonstandard	1 µH	Surface Mount	Unshielded	20 %	6.7 A	10.5 mOhm	2.1 mm	0.083 "
Delta Electronics/Cyntec VCHA042A-3R3MS6	165 °C	-55 °C	Metal	4.6 A	100 kHz	AEC-Q200	Nonstandard	3.3 µH	Surface Mount	Unshielded	20 %	3.4 A	36.8 mOhm	2.1 mm	0.083 "
Delta Electronics/Cyntec VCHA042A-5R6MS6	165 °C	-55 °C	Metal	3.4 A	100 kHz	AEC-Q200	Nonstandard	5.6 µH	Surface Mount	Unshielded	20 %	2.5 A	71.1 mOhm	2.1 mm	0.083 "
Delta Electronics/Cyntec VCHA042A-6R8MS6	165 °C	-55 °C	Metal	2.9 A	100 kHz	AEC-Q200	Nonstandard	6.8 µH	Surface Mount	Unshielded	20 %	2.2 A	92.5 mOhm	2.1 mm	0.083 "
Delta Electronics/Cyntec VCHA042A-1R5MS6	165 °C	-55 °C	Metal	7.3 A	100 kHz	AEC-Q200	Nonstandard	1.5 µH	Surface Mount	Unshielded	20 %	5.3 A		2.1 mm	0.083 "
Delta Electronics/Cyntec VCHA042A-100MS6	165 °C	-55 °C	Metal	2.5 A	100 kHz	AEC-Q200	Nonstandard	10 µH	Surface Mount	Unshielded	20 %	2 A	129 mOhm	2.1 mm	0.083 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.7 µH Unshielded Inductor 4 A 53.8mOhm Max Nonstandard
