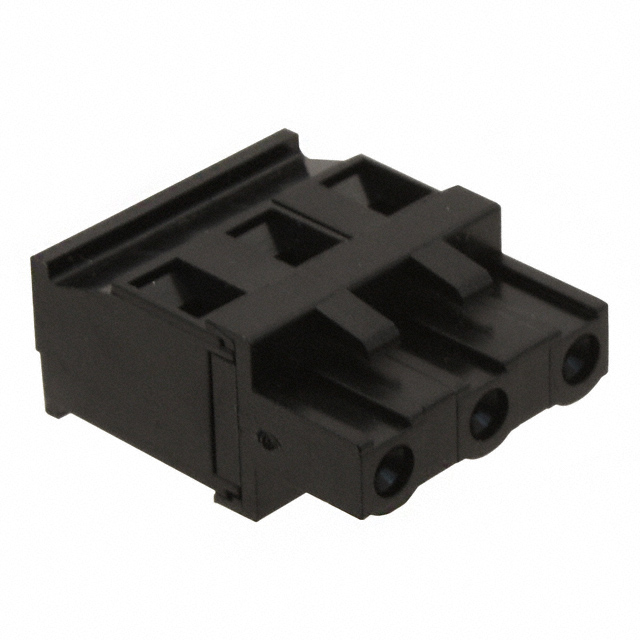

ELFT03450

Active

AMPHENOL PCD

TERM BLOCK PLUG 3POS 7.62MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK PLUG 3POS 7.62MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFT03450

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Features	Retention Latches (Wire Side)
Housing Material	Polyphenylene Oxide (PPO)
Insulation Height	26.16 mm
Insulation Height	1.03 "
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Plug Wire Entry	90 °
Positions Per Level	3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm
Torque - Screw	7 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG

Part	Contact Material	Termination Style	Positions Per Level	Color	Housing Material	Material Flammability Rating	Torque - Screw	Torque - Screw	Contact Mating Finish	Voltage - UL	Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Mounting Type	Plug Wire Entry	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Features
AMPHENOL PCD ELFT03450	Copper Alloy	Screw - Rising Cage Clamp	3	Black	Polyphenylene Oxide (PPO)	UL94 V-0	0.79 Nm	7 Lb-In	Tin	300 V	Plug Female Sockets	12 AWG	26 AWG	1	Free Hanging (In-Line)	90 °	0.3 in	7.62 mm	26.16 mm	1.03 "	Retention Latches (Wire Side)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 90° Free Hanging (In-Line)
