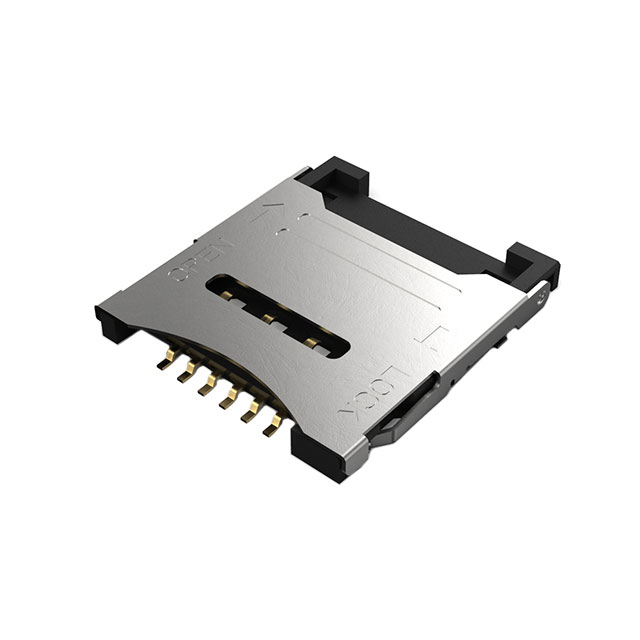

SIM7200-6-0-18-00-A
ActiveGCT
CONN MICRO SIM CARD R/A SMD
Deep-Dive with AI
Search across all available documentation for this part.
SIM7200-6-0-18-00-A
ActiveGCT
CONN MICRO SIM CARD R/A SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIM7200-6-0-18-00-A |
|---|---|
| Card Type | Micro SIM |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.025 µm |
| Contact Finish Thickness | 1 µin |
| Height Above Board [z] | 0.069 in |
| Height Above Board [z] | 1.75 mm |
| Insertion, Removal Method | Hinged Lid |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.47 | |
| 10 | $ 1.25 | |||
| 25 | $ 1.17 | |||
| 50 | $ 1.11 | |||
| 100 | $ 1.06 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.95 | |||
| Digi-Reel® | 1 | $ 1.47 | ||
| 10 | $ 1.25 | |||
| 25 | $ 1.17 | |||
| 50 | $ 1.11 | |||
| 100 | $ 1.06 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.95 | |||
| Tape & Reel (TR) | 1300 | $ 0.75 | ||
| 2600 | $ 0.72 | |||
Description
General part information
SIM7200 Series
6 Position Card Connector Micro SIM Surface Mount, Right Angle Gold
