BA3259HFP-TR

NRND

Rohm Semiconductor

IC REG LIN POS ADJ 1A/1A HRP-5

Search across all available documentation for this part.

NRND

Rohm Semiconductor

IC REG LIN POS ADJ 1A/1A HRP-5

Technical Specifications

Parameters and characteristics for this part

Specification	BA3259HFP-TR

Current - Output	1 A
Current - Quiescent (Iq)	3 mA
Current - Supply (Max) [Max]	5 mA
Mounting Type	Surface Mount
Number of Regulators	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Output Configuration	Positive
Output Type	Adjustable (Fixed)

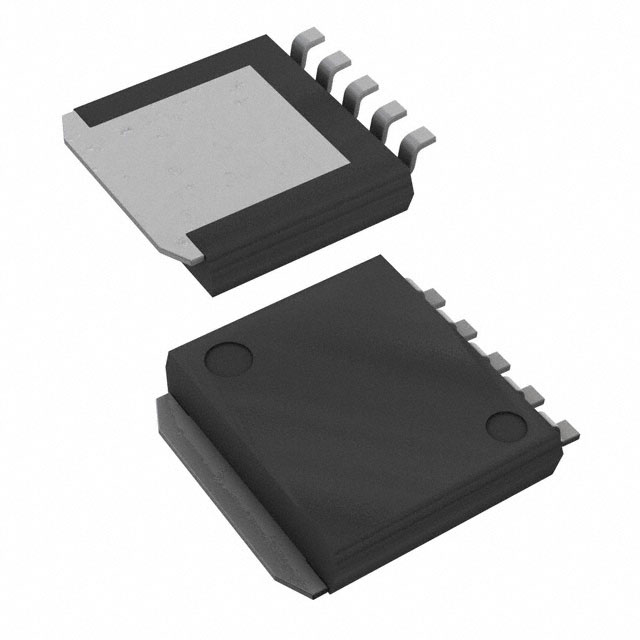

Package / Case	HRP-5 (5 Leads + Tab)
Protection Features	Over Current, Over Temperature
PSRR	52 dB
Supplier Device Package	HRP-5
Voltage - Input (Max) [Max]	14 V
Voltage - Output (Max) [Max]	3.3 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage - Output (Min/Fixed) [Min]	0.8 V
Voltage Dropout (Max) [Max]	1.3 V

Part	Current - Output	Mounting Type	Supplier Device Package	Voltage - Output (Max) [Max]	PSRR	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed) [Min]	Voltage - Input (Max) [Max]	Package / Case	Current - Quiescent (Iq)	Current - Supply (Max) [Max]	Output Type	Voltage Dropout (Max) [Max]	Output Configuration	Protection Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Regulators
Rohm Semiconductor BA3259HFP-TR	1 A	Surface Mount	HRP-5	3.3 V	52 dB	3.3 V	0.8 V	14 V	HRP-5 (5 Leads + Tab)	3 mA	5 mA	Adjustable (Fixed)	1.3 V	Positive	Over Current Over Temperature	0 °C	85 °C	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Adjustable (Fixed) 2 Output 1A, 1A HRP-5
