WM094RI,GY

Active

Serpac

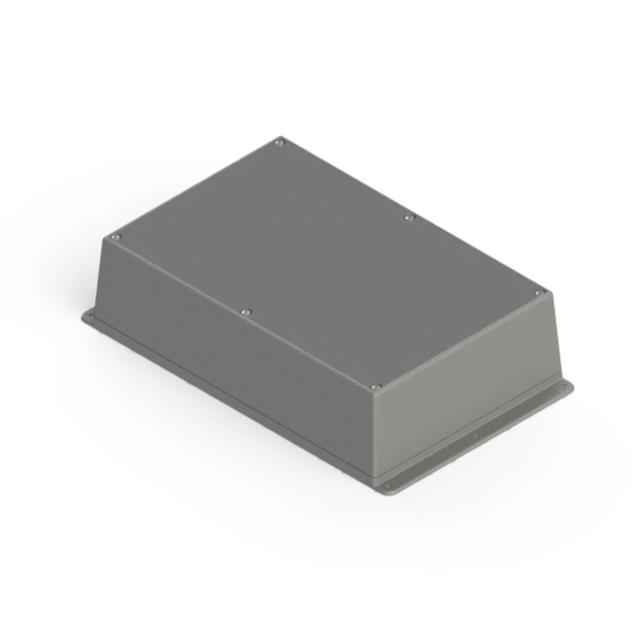

BOX ABS GRAY 9.5"L X 6.34"W

Deep-Dive with AI

Search across all available documentation for this part.

WM094RI,GY

Active

Serpac

BOX ABS GRAY 9.5"L X 6.34"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM094RI,GY

Area (L x W)	60.2 in²
Area (L x W)	388 cm²
Color	Gray
Container Type	Box
Design	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access
Height [z]	66.04 mm
Height [z]	66.04 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm
Size / Dimension [x]	9.5 "
Size / Dimension [y]	6.34 "
Thickness	2.54 mm
Thickness	0.1 in

WM094 Series

Part	Height [z]	Height [z]	Thickness	Thickness	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Area (L x W)	Area (L x W)	Features	Color	Ratings	Container Type	Material Flammability Rating	Design
Serpac WM094RI,GY	66.04 mm	66.04 mm	2.54 mm	0.1 in	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	Front Access Mounting Flange PCB Supports Wall Mount	Gray	IP40 NEMA 1	Box	UL94 HB	Cover Included
Serpac WM094I,BK	66.04 mm	66.04 mm	2.54 mm	0.1 in	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	Mounting Flange PCB Supports Wall Mount	Black	IP40 NEMA 1	Box	UL94 HB	Cover Included
Serpac WM094R,AL	66.04 mm	66.04 mm	2.54 mm	0.1 in	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	Front Access Mounting Flange PCB Supports Wall Mount	Almond	IP40 NEMA 1	Box	UL94 HB	Cover Included
Serpac WM094R,BK	66.04 mm	66.04 mm	2.54 mm	0.1 in	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	Front Access Mounting Flange PCB Supports Wall Mount	Black	IP40 NEMA 1	Box	UL94 HB	Cover Included
Serpac WM094RI,BK	66.04 mm	66.04 mm	2.54 mm	0.1 in	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	Front Access Mounting Flange PCB Supports Wall Mount	Black	IP40 NEMA 1	Box	UL94 HB	Cover Included
Serpac WM094I,AL	66.04 mm	66.04 mm	2.54 mm	0.1 in	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	Mounting Flange PCB Supports Wall Mount	Almond	IP40 NEMA 1	Box	UL94 HB	Cover Included
Serpac WM094R,GY	66.04 mm	66.04 mm	2.54 mm	0.1 in	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	Front Access Mounting Flange PCB Supports Wall Mount	Gray	IP40 NEMA 1	Box	UL94 HB	Cover Included
Serpac WM094,BK	66.04 mm	66.04 mm	2.54 mm	0.1 in	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	Mounting Flange PCB Supports Wall Mount	Black	IP40 NEMA 1	Box	UL94 HB	Cover Included
Serpac WM094RI,AL	66.04 mm	66.04 mm	2.54 mm	0.1 in	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	Front Access Mounting Flange PCB Supports Wall Mount	Almond	IP40 NEMA 1	Box	UL94 HB	Cover Included
Serpac WM094I,GY	66.04 mm	66.04 mm	2.54 mm	0.1 in	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	Mounting Flange PCB Supports Wall Mount	Gray	IP40 NEMA 1	Box	UL94 HB	Cover Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.00

Description

General part information

WM094 Series

Box Plastic, ABS Gray Cover Included 9.500" L x 6.340" W (241.30mm x 161.04mm) X 2.600" (66.04mm)

Documents

Technical documentation and resources

No documents available
