ASMD-CWG7-NX7F2
ActiveBroadcom Limited
LED WHITE/NEUTRAL 3014 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

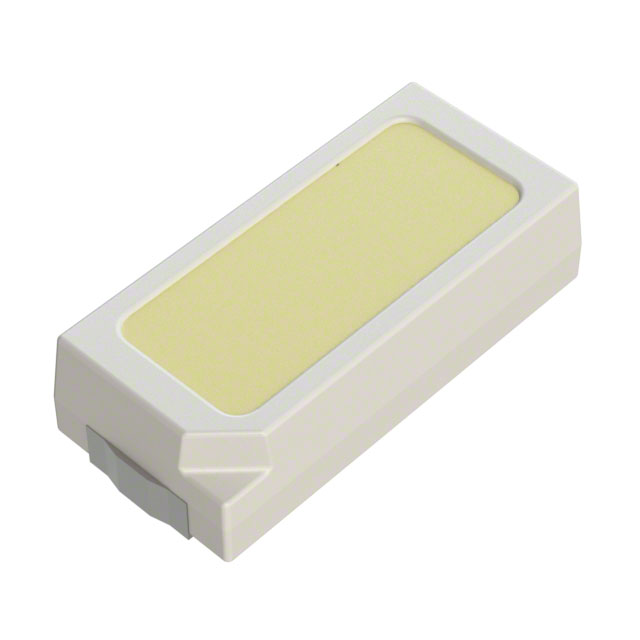

ASMD-CWG7-NX7F2
ActiveBroadcom Limited
LED WHITE/NEUTRAL 3014 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMD-CWG7-NX7F2 |
|---|---|
| Color | Neutral, White |
| Current - Test | 20 mA |
| Height (Max) [Max] | 0.9 mm |
| Lens Size [x] | 2.5 mm |
| Lens Size [y] | 1.15 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 2800 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 3014 Metric, 1206 |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 1.4 mm |
| Supplier Device Package | 3014 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.26 | |
| 10 | $ 0.14 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| 2000 | $ 0.05 | |||
| Digi-Reel® | 1 | $ 0.34 | ||
| 10 | $ 0.18 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.06 | |||
| 2000 | $ 0.06 | |||
| Tape & Reel (TR) | 4000 | $ 0.03 | ||
| 8000 | $ 0.03 | |||
Description
General part information
ASMD-CWG7 Series
White, Neutral LED Indication - Discrete 2.8V 1206 (3014 Metric)
