TB002-500-07BE

Active

CUI Devices

TERMINAL BLOCK, SCREW TYPE, 5.00

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TB002-500-07BE

Active

CUI Devices

TERMINAL BLOCK, SCREW TYPE, 5.00

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TB002-500-07BE

Clamp Material - Plating	Stainless, Steel
Color	Blue
Contact Material - Plating	Copper Alloy - Tin Plated
Current	15 A
Features	Interlocking (Side)
Housing Material	Polybutylene Terephthalate (PBT)
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	7
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M2.5
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Voltage	300 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Screw - Leaf Spring, Wire Guard

TB002 Series

Part	Voltage	Screw Material - Plating	Number of Levels	Wire Termination	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Mating Orientation	Screw Thread	Wire Gauge [Min]	Wire Gauge [Max]	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Plating	Mounting Type	Clamp Material - Plating	Color	Housing Material	Features	Current
CUI Devices TB002V-500-04BE	300 V	Steel Zinc Plated	1	Screw - Leaf Spring Wire Guard	0.4 Nm	3.5 Lb-In	5 mm	0.197 in	Vertical with Board	M2.5	12 AWG	22 AWG	4	-40 °C	105 ░C	Copper Alloy - Tin Plated	Through Hole	Stainless Steel	Blue	Polybutylene Terephthalate (PBT)	Interlocking (Side)	15 A
CUI Devices TB002-500-15BE	300 V	Steel Zinc Plated	1	Screw - Leaf Spring Wire Guard	0.4 Nm	3.5 Lb-In	5 mm	0.197 in	Horizontal with Board	M2.5	12 AWG	22 AWG	15	-40 °C	105 ░C	Copper Alloy - Tin Plated	Through Hole	Stainless Steel	Blue	Polybutylene Terephthalate (PBT)	Interlocking (Side)	15 A
CUI Devices TB002-500-04BE	300 V	Steel Zinc Plated	1	Screw - Leaf Spring Wire Guard	0.4 Nm	3.5 Lb-In	5 mm	0.197 in	Horizontal with Board	M2.5	12 AWG	22 AWG	4	-40 °C	105 ░C	Copper Alloy - Tin Plated	Through Hole	Stainless Steel	Blue	Polybutylene Terephthalate (PBT)	Interlocking (Side)	15 A
CUI Devices TB002-500-17BE	300 V	Steel Zinc Plated	1	Screw - Leaf Spring Wire Guard	0.4 Nm	3.5 Lb-In	5 mm	0.197 in	Horizontal with Board	M2.5	12 AWG	22 AWG	17	-40 °C	105 ░C	Copper Alloy - Tin Plated	Through Hole	Stainless Steel	Blue	Polybutylene Terephthalate (PBT)	Interlocking (Side)	15 A
CUI Devices TB002-500-20BE	300 V	Steel Zinc Plated	1	Screw - Leaf Spring Wire Guard	0.4 Nm	3.5 Lb-In	5 mm	0.197 in	Horizontal with Board	M2.5	12 AWG	22 AWG	20	-40 °C	105 ░C	Copper Alloy - Tin Plated	Through Hole	Stainless Steel	Blue	Polybutylene Terephthalate (PBT)	Interlocking (Side)	15 A
CUI Devices TB002-500-08BE	300 V	Steel Zinc Plated	1	Screw - Leaf Spring Wire Guard	0.4 Nm	3.5 Lb-In	5 mm	0.197 in	Horizontal with Board	M2.5	12 AWG	22 AWG	8	-40 °C	105 ░C	Copper Alloy - Tin Plated	Through Hole	Stainless Steel	Blue	Polybutylene Terephthalate (PBT)	Interlocking (Side)	15 A
CUI Devices TB002V-500-13BE	300 V	Steel Zinc Plated	1	Screw - Leaf Spring Wire Guard	0.4 Nm	3.5 Lb-In	5 mm	0.197 in	Vertical with Board	M2.5	12 AWG	22 AWG	13	-40 °C	105 ░C	Copper Alloy - Tin Plated	Through Hole	Stainless Steel	Blue	Polybutylene Terephthalate (PBT)	Interlocking (Side)	15 A
CUI Devices TB002-500-07BE	300 V	Steel Zinc Plated	1	Screw - Leaf Spring Wire Guard	0.4 Nm	3.5 Lb-In	5 mm	0.197 in	Horizontal with Board	M2.5	12 AWG	22 AWG	7	-40 °C	105 ░C	Copper Alloy - Tin Plated	Through Hole	Stainless Steel	Blue	Polybutylene Terephthalate (PBT)	Interlocking (Side)	15 A
CUI Devices TB002V-500-17BE	300 V	Steel Zinc Plated	1	Screw - Leaf Spring Wire Guard	0.4 Nm	3.5 Lb-In	5 mm	0.197 in	Vertical with Board	M2.5	12 AWG	22 AWG	17	-40 °C	105 ░C	Copper Alloy - Tin Plated	Through Hole	Stainless Steel	Blue	Polybutylene Terephthalate (PBT)	Interlocking (Side)	15 A
CUI Devices TB002V-500-02BE	300 V	Steel Zinc Plated	1	Screw - Leaf Spring Wire Guard	0.4 Nm	3.5 Lb-In	5 mm	0.197 in	Vertical with Board	M2.5	12 AWG	22 AWG	2	-40 °C	105 ░C	Copper Alloy - Tin Plated	Through Hole	Stainless Steel	Blue	Polybutylene Terephthalate (PBT)	Interlocking (Side)	15 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.25
		10	$ 0.88
		25	$ 0.82
		50	$ 0.74
		100	$ 0.74
		250	$ 0.63
		500	$ 0.59
		1070	$ 0.53
		5350	$ 0.43

Description

General part information

TB002 Series

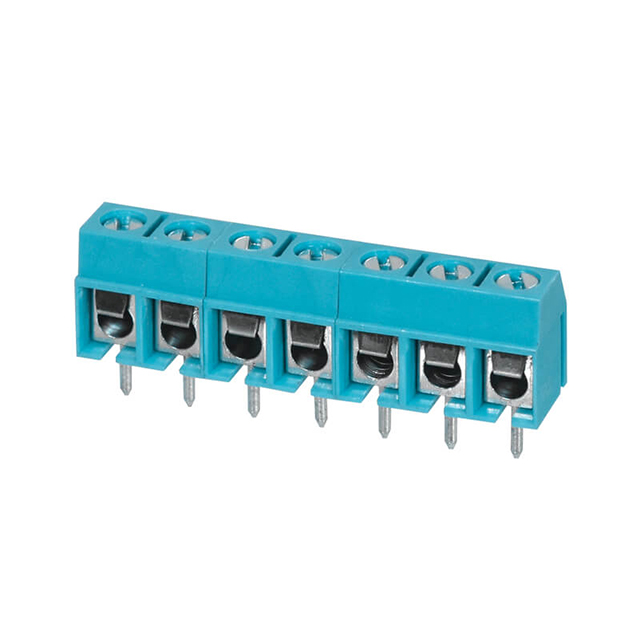

7 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
