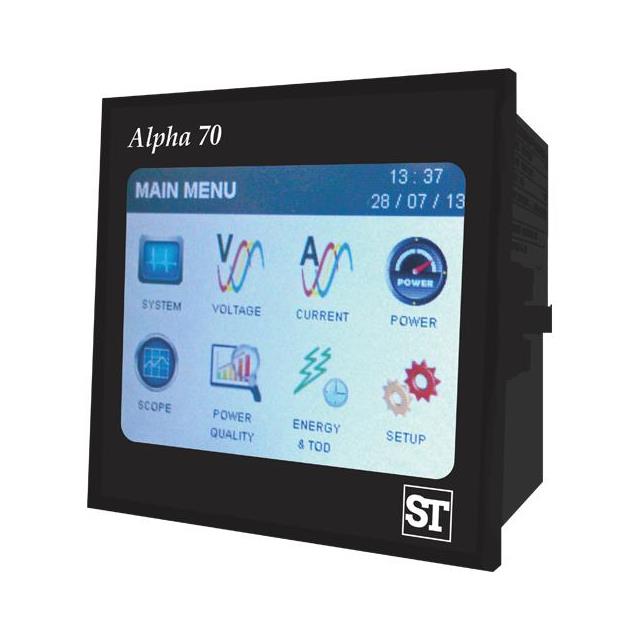

AP70-38F75HRDI0000

Active

Sifam Tinsley Instrumentation Inc

MULT METER 1-5A/100-500V LCD PNL

Search across all available documentation for this part.

Active

Sifam Tinsley Instrumentation Inc

MULT METER 1-5A/100-500V LCD PNL

Technical Specifications

Parameters and characteristics for this part

Specification	AP70-38F75HRDI0000

Display Type	LCD - Tri Color Characters
Ingress Protection	IP54 - Dust Protected, Water Resistant
Measuring Range [Max]	500 V, 5 A
Measuring Range [Min]	1 A, 100 V
Measuring Type	Current (3-Phase), Wattage, Voltage
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	92.8 mm
Panel Cutout Dimensions [y]	92.8 mm
Termination Style	Wire Leads
Type	Energy Monitor
Voltage - Supply [Max]	300 VAC/DC
Voltage - Supply [Min]	60 VAC/DC

Part	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Type	Measuring Range [Max]	Measuring Range [Min]	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Measuring Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection
Sifam Tinsley Instrumentation Inc AP70-38F75HRDI0000	Wire Leads	92.8 mm	92.8 mm	LCD - Tri Color Characters	5 A 500 V	1 A 100 V	Energy Monitor	60 VAC/DC	300 VAC/DC	Current (3-Phase) Voltage Wattage	-20 C	70 °C	IP54 - Dust Protected Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 600.00

General part information

Energy Monitor LCD - Tri Color Characters Display Panel Mount
