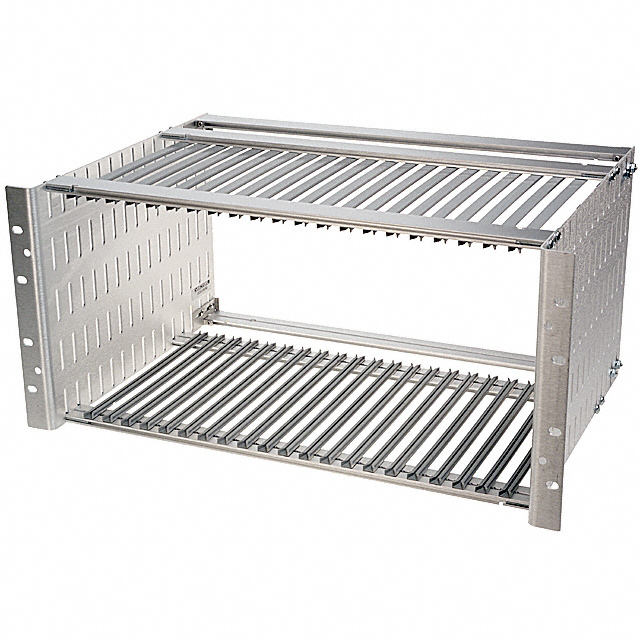

CCA17S/90

Active

Vector Electronics

CARD RACK ALUM 12X19

Search across all available documentation for this part.

Active

Vector Electronics

CARD RACK ALUM 12X19

Technical Specifications

Parameters and characteristics for this part

Specification	CCA17S/90

Card Size Range	9.6 in
Card Size Range	243.84 mm
Card Size Range [Max]	8 in
Card Size Range [Max]	203.2 mm
Card Size Range [Min]	6 in
Card Size Range [Min]	152.4 mm
Guide Method	Card Guide
Height [z]	8.75 in
Height [z]	222.25 mm
Material	Aluminum
Size / Dimension [x]	12 in
Size / Dimension [x]	304.8 mm
Size / Dimension [y]	482.6 mm
Size / Dimension [y]	19 in
Type	Assembled Subracks with Card Guides

Part	Card Size Range [Min]	Card Size Range	Card Size Range [Max]	Card Size Range	Card Size Range [Min]	Card Size Range [Max]	Guide Method	Material	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height [z]	Height [z]
Vector Electronics CCA17S/90	6 in	9.6 in	8 in	243.84 mm	152.4 mm	203.2 mm	Card Guide	Aluminum	Assembled Subracks with Card Guides	12 in	304.8 mm	482.6 mm	19 in	8.75 in	222.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Aluminum Assembled Subracks with Card Guides 5U = 8.750" (222.25mm)
