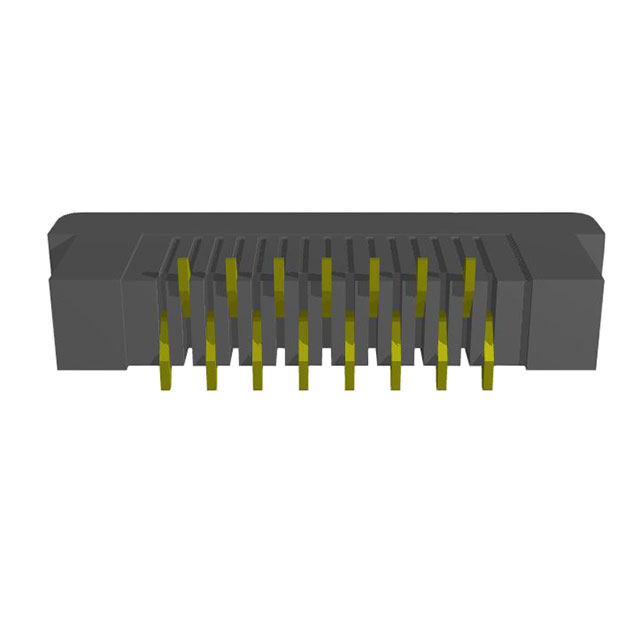

ZF5S-15-03-T-WT-TR

Active

Samtec Inc.

CONN FFC VERT 15POS 0.5MM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZero Insertion Force Connector for FFC, 0.50 mm (.0197") Pitch ZF5S Datasheet +1

ZF5S-15-03-T-WT-TR

Active

Samtec Inc.

CONN FFC VERT 15POS 0.5MM SMD

Deep-Dive with AI

DocumentsZero Insertion Force Connector for FFC, 0.50 mm (.0197") Pitch ZF5S Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZF5S-15-03-T-WT-TR

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Straight
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	1.8 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC
Height Above Board	4.87 mm
Height Above Board	0.192 in
Housing Color	Natural
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Slide Lock
Mounting Type	Surface Mount
Number of Positions	15
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder

ZF5S-15 Series

Part	Housing Material	Current Rating (Amps)	Locking Feature	Contact Material	Housing Color	FFC, FCB Thickness	Connector/Contact Type	Flat Flex Type	Actuator Material	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Color	Height Above Board	Height Above Board	Mounting Type	Termination	Number of Positions	Features	Cable End Type	Pitch [x]	Pitch [x]
Samtec Inc. ZF5S-15-03-T-WT	Liquid Crystal Polymer (LCP)	1.8 A	Slide Lock	Phosphor Bronze	Natural	0.3 mm	Contacts Vertical - 1 Sided	FFC	Liquid Crystal Polymer (LCP)	Tin	105 ░C	-55 °C	Black	4.87 mm	0.192 in	Surface Mount	Solder	15	Solder Retention Zero Insertion Force (ZIF)	Straight	0.5 mm	0.02 in
Samtec Inc. ZF5S-15-03-T-WT-TR	Liquid Crystal Polymer (LCP)	1.8 A	Slide Lock	Phosphor Bronze	Natural	0.3 mm	Contacts Vertical - 1 Sided	FFC	Liquid Crystal Polymer (LCP)	Tin	105 ░C	-55 °C	Black	4.87 mm	0.192 in	Surface Mount	Solder	15	Solder Retention Zero Insertion Force (ZIF)	Straight	0.5 mm	0.02 in
Samtec Inc. ZF5S-15-01-T-WT-K	Liquid Crystal Polymer (LCP)	1.8 A	Slide Lock	Phosphor Bronze	Natural	0.3 mm	Contacts Bottom	FFC	Liquid Crystal Polymer (LCP)	Tin	105 ░C	-55 °C	Black	2.1 mm	0.083 "	Surface Mount Right Angle	Solder	15	Pick and Place Cap Solder Retention Zero Insertion Force (ZIF)	Straight	0.5 mm	0.02 in
Samtec Inc. ZF5S-15-02-T-WT-TR	Liquid Crystal Polymer (LCP)	1.8 A	Slide Lock	Phosphor Bronze	Natural	0.3 mm	Contacts Top	FFC	Liquid Crystal Polymer (LCP)	Tin	105 ░C	-55 °C	Black	2.1 mm	0.083 "	Surface Mount Right Angle	Solder	15	Solder Retention Zero Insertion Force (ZIF)	Straight	0.5 mm	0.02 in
Samtec Inc. ZF5S-15-02-T-WT-K-TR	Liquid Crystal Polymer (LCP)	1.8 A	Slide Lock	Phosphor Bronze	Natural	0.3 mm	Contacts Top	FFC	Liquid Crystal Polymer (LCP)	Tin	105 ░C	-55 °C	Black	2.1 mm	0.083 "	Surface Mount Right Angle	Solder	15	Pick and Place Cap Solder Retention Zero Insertion Force (ZIF)	Straight	0.5 mm	0.02 in
Samtec Inc. ZF5S-15-01-T-WT-K-TR	Liquid Crystal Polymer (LCP)	1.8 A	Slide Lock	Phosphor Bronze	Natural	0.3 mm	Contacts Bottom	FFC	Liquid Crystal Polymer (LCP)	Tin	105 ░C	-55 °C	Black	2.1 mm	0.083 "	Surface Mount Right Angle	Solder	15	Pick and Place Cap Solder Retention Zero Insertion Force (ZIF)	Straight	0.5 mm	0.02 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.50
		50	$ 2.03
		100	$ 1.73
	Tape & Reel (TR)	975	$ 1.54
		1950	$ 1.18
		2925	$ 1.06
		6825	$ 1.02

Description

General part information

ZF5S-15 Series

15 Position FFC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
