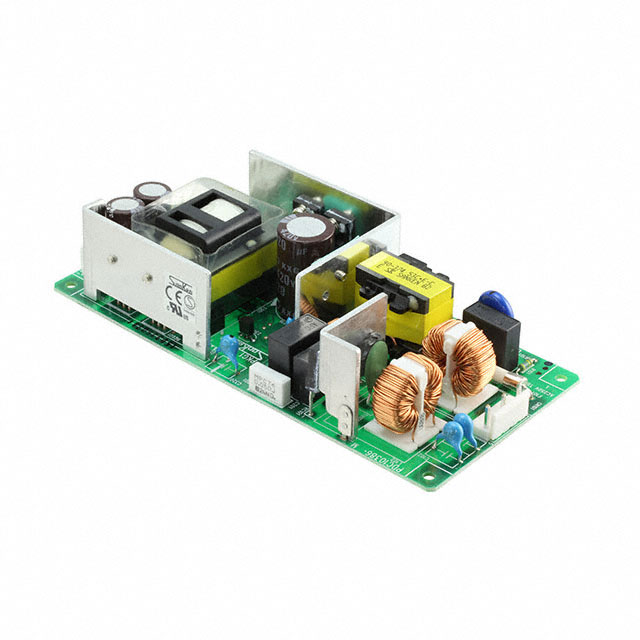

SWF150P-36

Obsolete

Sanken Electric USA Inc.

AC/DC CONVERTER 36V 150W

Deep-Dive with AI

Search across all available documentation for this part.

SWF150P-36

Obsolete

Sanken Electric USA Inc.

AC/DC CONVERTER 36V 150W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SWF150P-36

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	4.2 A
Efficiency	91 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Power (Watts)	150 W
Size / Dimension [x]	6.3 "
Size / Dimension [x]	160 mm
Size / Dimension [y]	2.95 in
Size / Dimension [y]	75 mm
Size / Dimension [z]	37 mm
Size / Dimension [z]	1.46 "
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	36 V

SWF150 Series

Part	Efficiency	Mounting Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Voltage - Isolation	Type	Applications	Voltage - Output 1	Current - Output 1	Power (Watts)	Approval Agency	Features	Operating Temperature [Min]	Operating Temperature [Max]
Sanken Electric USA Inc. SWF150P-24-L-R	91 %	Chassis Mount	-10 °C	158 °F	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	1	3000 V	Open Frame	ITE (Commercial)	24 V	6.3 A	150 W	CE cURus
Sanken Electric USA Inc. SWF150P-24-L	91 %	Chassis Mount	-10 °C	158 °F	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	1	3000 V	Open Frame	ITE (Commercial)	24 V	6.3 A	150 W	CE cURus	Adjustable Output Universal Input
Sanken Electric USA Inc. SWF150P-48-R	91 %	Chassis Mount			2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	1	3000 V	Open Frame	ITE (Commercial)	48 V	3.2 A	150 W	CE	Adjustable Output PFC Remote On/Off Universal Input	-10 °C	70 °C
Sanken Electric USA Inc. SWF150P-36	91 %	Chassis Mount	-10 °C	158 °F	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	1	3000 V	Open Frame	ITE (Commercial)	36 V	4.2 A	150 W	CE	Adjustable Output Universal Input
Sanken Electric USA Inc. SWF150P-48-LC-R	91 %	Chassis Mount			3.35 in	85 mm	47 mm	7.4 "	1.85 in	188 mm	1	3000 V	Enclosed	ITE (Commercial)	48 V	3.2 A	150 W	CE	Adjustable Output PFC Remote On/Off Universal Input	-10 °C	70 °C
Sanken Electric USA Inc. SWF150P-48-L-R	91 %	Chassis Mount			3.35 in	85 mm	47 mm	7.4 "	1.85 in	188 mm	1	3000 V	Enclosed	ITE (Commercial)	48 V	3.2 A	150 W	CE	Adjustable Output PFC Remote On/Off Universal Input	-10 °C	70 °C
Sanken Electric USA Inc. SWF150P-24-LC-R	91 %	Chassis Mount	-10 °C	158 °F	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	1	3000 V	Enclosed	ITE (Commercial)	24 V	6.3 A	150 W	CE cURus
Sanken Electric USA Inc. SWF150P-24-LC	91 %	Chassis Mount	-10 °C	158 °F	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	1	3000 V	Enclosed	ITE (Commercial)	24 V	6.3 A	150 W	CE cURus	Adjustable Output Universal Input
Sanken Electric USA Inc. SWF150P-36-R	91 %	Chassis Mount			2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	1	3000 V	Open Frame	ITE (Commercial)	36 V	4.2 A	150 W	CE	Adjustable Output PFC Remote On/Off Universal Input	-10 °C	70 °C
Sanken Electric USA Inc. SWF150P-48	91 %	Chassis Mount	-10 °C	158 °F	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	1	3000 V	Open Frame	ITE (Commercial)	48 V	3.2 A	150 W	CE	Adjustable Output Universal Input

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SWF150 Series

Open Frame AC DC Converters 1 Output 36V 85 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
