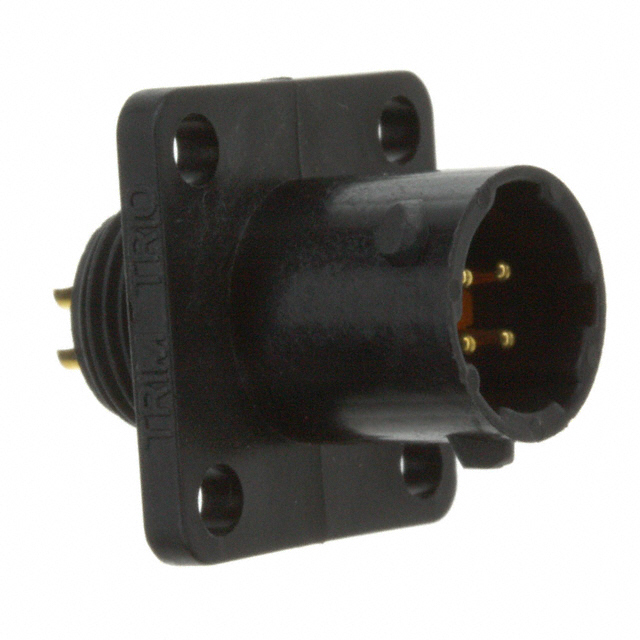

UTS08E4P

Active

Souriau-Sunbank by Eaton

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

UTS08E4P

Active

Souriau-Sunbank by Eaton

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTS08E4P

Applications	Instrumentation, Energy, Lighting, Telecommunications
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Material	Brass
Current Rating (Amps)	7 A
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP69K
Insert Material	Polychloroprene
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	8-4
Shielding	Unshielded
Voltage Rating	250 VDC

UTS08 Series

Part	Shielding	Orientation	Features	Connector Type	Insert Material	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Primary Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination	Contact Material	Applications	Shell Size - Insert	Mounting Feature	Voltage Rating	Ingress Protection	Color	Material Flammability Rating	Fastening Type	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Souriau-Sunbank by Eaton UTS08D33P	Unshielded	N	UV Resistant	Male Pins Receptacle	Polychloroprene	Polybutylene Terephthalate (PBT)	16 Áin	0.41 Ám	Gold	Plastic	Panel Mount Through Hole	-40 °C	105 ░C	7 A	Solder	Brass	Energy Instrumentation Lighting Telecommunications	8-33	Flange	250 VDC	IP68 IP69K	Black	UL94 V-0	Bayonet Lock
Souriau-Sunbank by Eaton UTS08E4P	Unshielded	N	UV Resistant	Male Pins Receptacle	Polychloroprene	Polybutylene Terephthalate (PBT)	16 Áin	0.41 Ám	Gold	Plastic		-40 °C	105 ░C	7 A		Brass	Energy Instrumentation Lighting Telecommunications	8-4	Flange	250 VDC	IP68 IP69K	Black	UL94 V-0	Bayonet Lock	4
Souriau-Sunbank by Eaton UTS08E4S	Unshielded	N	UV Resistant	Receptacle Female Sockets	Polychloroprene	Polybutylene Terephthalate (PBT)	16 Áin	0.41 Ám	Gold	Plastic		-40 °C	105 ░C	7 A		Brass	Energy Instrumentation Lighting Telecommunications	8-4	Flange	250 VDC	IP68 IP69K	Black	UL94 V-0	Bayonet Lock	4
Souriau-Sunbank by Eaton UTS08D98S	Unshielded	N	UV Resistant	Receptacle Female Sockets	Polychloroprene	Polybutylene Terephthalate (PBT)	16 Áin	0.41 Ám	Gold	Plastic	Panel Mount Through Hole	-40 °C	105 ░C	7 A	Solder	Brass	Energy Instrumentation Lighting Telecommunications		Flange	250 VDC	IP68 IP69K	Black	UL94 V-0	Bayonet Lock		8	98
Souriau-Sunbank by Eaton UTS08E2P	Unshielded	N	UV Resistant	Male Pins Receptacle	Polychloroprene	Polybutylene Terephthalate (PBT)	16 Áin	0.41 Ám	Gold	Plastic		-40 °C	105 ░C	7 A		Brass	Energy Instrumentation Lighting Telecommunications	8-2	Flange	250 VDC	IP68 IP69K	Black	UL94 V-0	Bayonet Lock	2
Souriau-Sunbank by Eaton UTS08D2S	Unshielded	N	UV Resistant	Receptacle Female Sockets	Polychloroprene	Polybutylene Terephthalate (PBT)	16 Áin	0.41 Ám	Gold	Plastic	Panel Mount Through Hole	-40 °C	105 ░C	7 A	Solder	Brass	Energy Instrumentation Lighting Telecommunications	8-2	Flange	250 VDC	IP68 IP69K	Black	UL94 V-0	Bayonet Lock	2
Souriau-Sunbank by Eaton UTS08D3P	Unshielded	N	UV Resistant	Male Pins Receptacle	Polychloroprene	Polybutylene Terephthalate (PBT)	16 Áin	0.41 Ám	Gold	Plastic	Panel Mount Through Hole	-40 °C	105 ░C	7 A	Solder	Brass	Energy Instrumentation Lighting Telecommunications	8-3	Flange	250 VDC	IP68 IP69K	Black	UL94 V-0	Bayonet Lock
Souriau-Sunbank by Eaton UTS08E3AS	Unshielded	N	UV Resistant	Receptacle Female Sockets	Polychloroprene	Polybutylene Terephthalate (PBT)	16 Áin	0.41 Ám	Gold	Plastic		-40 °C	105 ░C	7 A		Brass	Energy Instrumentation Lighting Telecommunications	8-3A	Flange	250 VDC	IP68 IP69K	Black	UL94 V-0	Bayonet Lock
Souriau-Sunbank by Eaton UTS08D2P	Unshielded	N	UV Resistant	Male Pins Receptacle	Polychloroprene	Polybutylene Terephthalate (PBT)	16 Áin	0.41 Ám	Gold	Plastic	Panel Mount Through Hole	-40 °C	105 ░C	7 A	Solder	Brass	Energy Instrumentation Lighting Telecommunications	8-2	Flange	250 VDC	IP68 IP69K	Black	UL94 V-0	Bayonet Lock	2
Souriau-Sunbank by Eaton UTS08E98S	Unshielded	N	UV Resistant	Receptacle Female Sockets	Polychloroprene	Polybutylene Terephthalate (PBT)	16 Áin	0.41 Ám	Gold	Plastic		-40 °C	105 ░C	7 A		Brass	Energy Instrumentation Lighting Telecommunications		Flange	250 VDC	IP68 IP69K	Black	UL94 V-0	Bayonet Lock		8	98

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.22
		10	$ 16.65
		25	$ 15.78
		50	$ 15.56
		100	$ 13.73
		250	$ 12.81
		500	$ 12.54

Description

General part information

UTS08 Series

4 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available
