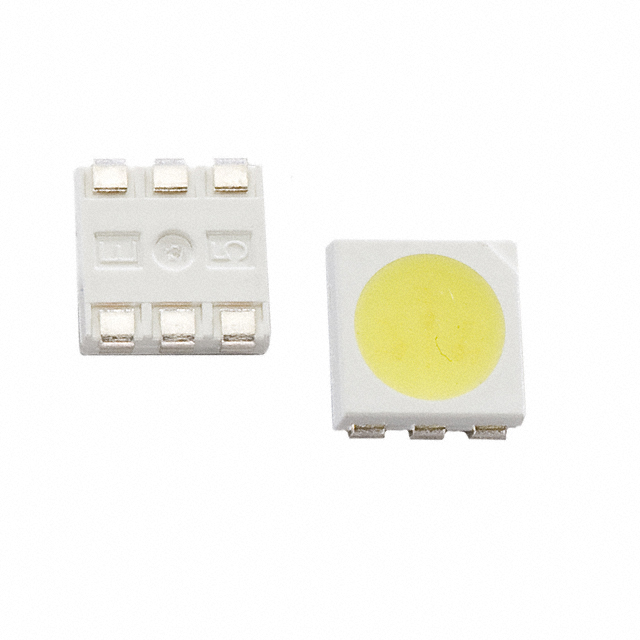

SMTL6-UWDN

Active

Bivar Inc.

LED WHITE/NEUTRAL DIFF 6PLCC SMD

Search across all available documentation for this part.

Active

Bivar Inc.

LED WHITE/NEUTRAL DIFF 6PLCC SMD

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Package / Case	Voltage - Forward (Vf) (Typ)	Current - Test	Lens Color	Color	Height (Max) [Max] [z]	Mounting Type	Wavelength - Dominant	Viewing Angle	Millicandela Rating	Supplier Device Package	Lens Size [diameter]	Configuration
Bivar Inc. SMTL6-UWDN	5 mm	5.4 mm	Diffused	6-SMD J-Lead	3 V	60 mA	Yellow	Neutral White	1.6 mm	Surface Mount	5500 K	140 °	4000 mcd	6-PLCC	4 mm	Standard
Bivar Inc. SMTL6-UWDC	5 mm	5.4 mm	Diffused	6-SMD J-Lead	3 V	60 mA	Yellow	Cool White	1.6 mm	Surface Mount	8000 K	140 °	4000 mcd	6-PLCC	4 mm	Standard
Bivar Inc. SMTL6-BWC	5 mm	5.4 mm	Clear	6-SMD J-Lead	3 V	60 mA	Colorless	Blue	1.6 mm	Surface Mount	471 nm	140 °	1500 mcd	6-PLCC	4 mm	Standard
Bivar Inc. SMTL6-GC	5 mm	5.4 mm	Clear	6-SMD J-Lead	3.3 V	60 mA	Colorless	Green	1.6 mm	Surface Mount	526 nm	140 °	3500 mcd	6-PLCC	4 mm	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

White, Neutral 5500K LED Indication - Discrete 3V 6-SMD, J-Lead
