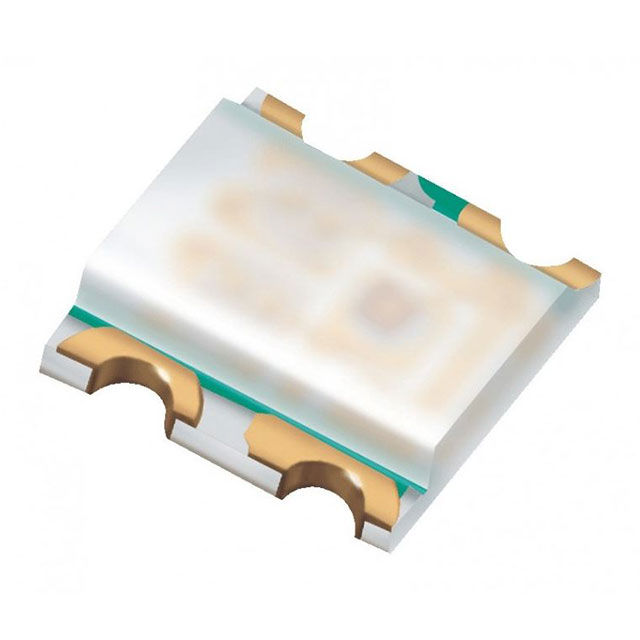

EAST1616RGBB4

Active

Everlight Electronics Co Ltd

LED RGB CLEAR 4SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EAST1616RGBB4

Active

Everlight Electronics Co Ltd

LED RGB CLEAR 4SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EAST1616RGBB4

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	5 mA
Current - Test [custom]	5 mA
Current - Test [custom]	5 mA
Height (Max) [Max] [z]	0.45 mm
Lens Color	Colorless
Lens Size [x]	1.6 mm
Lens Size [y]	1.1 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Mounting Type	Surface Mount
Package / Case	0606, 1616 Metric
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	1.6 mm
Supplier Device Package	4-SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) [custom]	2.8 V
Voltage - Forward (Vf) (Typ) [custom]	2.8 V
Voltage - Forward (Vf) (Typ) [custom]	1.8 V
Wavelength - Peak [custom]	632 nm
Wavelength - Peak [custom]	518 nm
Wavelength - Peak [custom]	468 nm

EAST1616 Series

Part	Lens Size [y]	Lens Size [x]	Lens Transparency	Height (Max) [Max] [z]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Lens Style	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Color	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Supplier Device Package	Lens Color	Voltage - Forward (Vf) (Typ)	Viewing Angle	Configuration	Mounting Type	Millicandela Rating	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test	Wavelength - Peak	Wavelength - Dominant
Everlight Electronics Co Ltd EAST1616RGBA4	1.1 mm	1.6 mm	Clear	0.45 mm	624 nm	470 nm	525 nm	Rectangle with Flat Top	0606 1616 Metric	1.6 mm	1.6 mm	Blue Green Red	20 mA	20 mA	20 mA	632 nm	518 nm	468 nm	6-SMD	Colorless	2.05 V 3.25 V 3.25 V	120 °	Independent	Surface Mount	50 mcd 100 mcd 180 mcd
Everlight Electronics Co Ltd EAST1616RGBB4	1.1 mm	1.6 mm	Clear	0.45 mm				Rectangle with Flat Top	0606 1616 Metric	1.6 mm	1.6 mm	Blue Green Red	5 mA	5 mA	5 mA	632 nm	518 nm	468 nm	4-SMD	Colorless		120 °	Common Anode	Surface Mount		2.8 V	2.8 V	1.8 V
Everlight Electronics Co Ltd EAST1616RGBA3	1.1 mm	1.6 mm	Clear	0.45 mm				Rectangle with Flat Top	0606 1616 Metric	1.6 mm	1.6 mm	Blue Green Red	5 mA	5 mA	5 mA	632 nm	518 nm	468 nm	4-SMD	Colorless		120 °	Common Anode	Surface Mount		2.8 V	2.8 V	1.95 V
Everlight Electronics Co Ltd EAST1616RGBA2	1.1 mm	1.6 mm	Clear	0.45 mm				Rectangle with Flat Top	0606 1616 Metric	1.6 mm	1.6 mm	Blue Green Red	20 mA	20 mA	20 mA	518 nm	468 nm	632 nm	4-SMD	Colorless	2.05 V 3.25 V 3.25 V	120 °	Common Anode	Surface Mount
Everlight Electronics Co Ltd EAST1616RGBB2	1.1 mm	1.6 mm	Diffused	0.45 mm				Rectangle with Flat Top	0606 1616 Metric	1.6 mm	1.6 mm	Blue Green Red	5 mA	5 mA	5 mA	632 nm	518 nm	468 nm	4-SMD	White		120 °	Common Anode	Surface Mount		2.8 V	2.8 V	1.9 V
Everlight Electronics Co Ltd EAST1616RGYA0	1.1 mm	1.6 mm	Clear	0.45 mm				Rectangle with Flat Top	0606 1616 Metric	1.6 mm	1.6 mm	Green Red Yellow							4-SMD	Colorless	2.05 V 2.05 V 3.2 V	120 °	Common Anode	Surface Mount					126 mcd	198.5 mcd	126 mcd	5 mA	518 nm 591 nm 632 nm	525 nm 591 nm 625 nm
