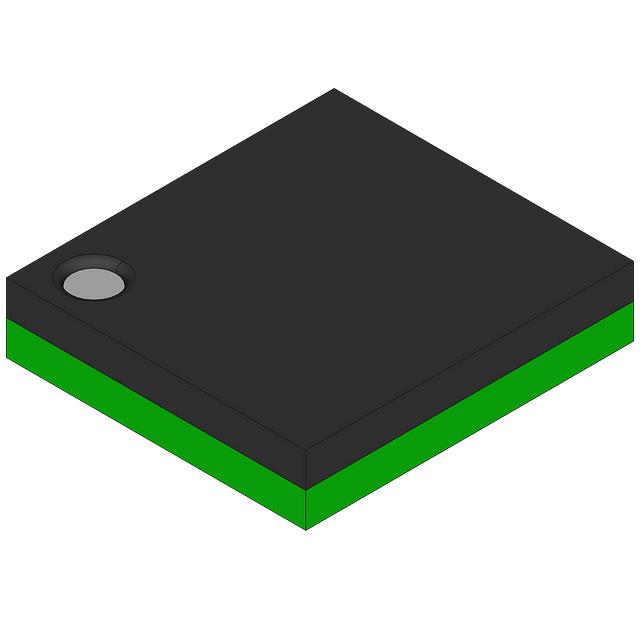

LP5526TL/NOPB
ActiveNational Semiconductor
IC LED DRV RGLTR PWM 1.5A 25USMD
Deep-Dive with AI
Search across all available documentation for this part.
LP5526TL/NOPB
ActiveNational Semiconductor
IC LED DRV RGLTR PWM 1.5A 25USMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LP5526TL/NOPB |
|---|---|
| Applications | Camera Flash, Backlight |
| Current - Output / Channel | 1.5 A |
| Dimming | PWM |
| Frequency | 1 MHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 5 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Package / Case | 25-WFBGA |
| Supplier Device Package | 25-uSMD |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Output [Max] | 20 V |
| Voltage - Output [Min] | 8 V |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 112 | $ 2.69 | |
Description
General part information
LP5526 Series
LED Driver IC 5 Output DC DC Regulator Step-Up (Boost) PWM Dimming 1.5A (Switch) 25-uSMD
Documents
Technical documentation and resources
No documents available
