AP22908W6-EVM

Active

Diodes Inc

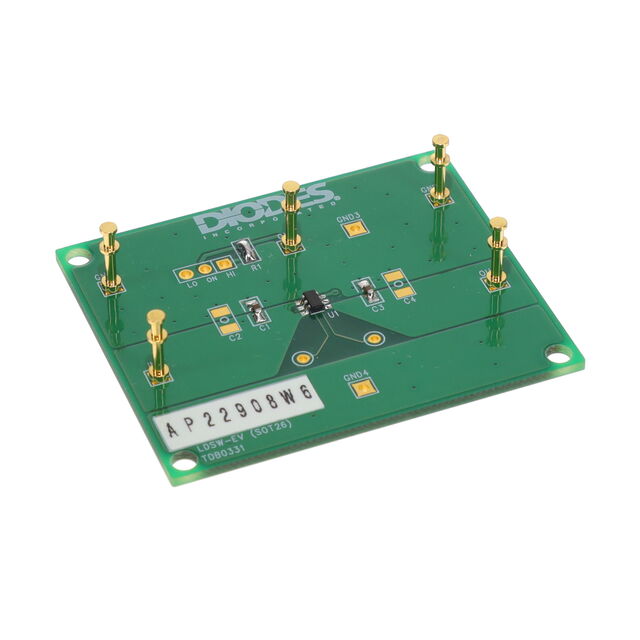

EVAL BOARD FOR AP22908

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AP22908W6-EVM

Active

Diodes Inc

EVAL BOARD FOR AP22908

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP22908W6-EVM

Contents	Board(s)
Function	Power Distribution Switch (Load Switch)
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	AP22908

AP22908 Series

1.5A Single Slew Rate Controlled Load Switch

Part	Output Type	Rds On (Typ)	Output Configuration	Switch Type	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - Input:Output [custom]	Current - Output (Max) [Max]	Package / Case	Input Type	Features	Voltage - Load [Max]	Voltage - Load [Min]	Interface	Mounting Type	Number of Outputs	Function	Utilized IC / Part	Type	Contents	Supplied Contents	Supplier Device Package
Diodes Inc AP22908CNA4-7	P-Channel	112 mOhm	High Side	General Purpose	85 °C	-40 °C	1:1	1.5 A	4-UFBGA WLBGA	Non-Inverting	Load Discharge Slew Rate Controlled	3.6 V	1.08 V	On/Off	Surface Mount	1
Diodes Inc AP22908W6-EVM																	Power Distribution Switch (Load Switch)	AP22908	Power Management	Board(s)	Board(s)
Diodes Inc AP22908CN4-EVM																	Power Distribution Switch (Load Switch)	AP22908	Power Management	Board(s)	Board(s)
Diodes Inc AP22908W6-7	P-Channel	120 mOhm	High Side	General Purpose	85 °C	-40 °C	1:1	1.5 A	SOT-23-6	Non-Inverting	Load Discharge Slew Rate Controlled	3.6 V	1.08 V	On/Off	Surface Mount	1						SOT-26
Diodes Inc AP22908CN4-7	P-Channel	112 mOhm	High Side	General Purpose	85 °C	-40 °C	1:1	1.5 A	4-XFBGA WLBGA	Non-Inverting	Load Discharge Slew Rate Controlled	3.6 V	1.08 V	On/Off	Surface Mount	1						X1-WLB0909-4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 29.70

Description

General part information

AP22908 Series

The AP22908 slew rate controlled load switch is a single P-channel MOSFET power switch designed for high-side load-switching applications. The MOSFET has a typical low RDS(ON) of 28mΩ at 3.6V, allowing increased load current handling capacity with a low forward voltage drop. The turn-on slew rate of the device is controlled internally to avoid inrush current.
