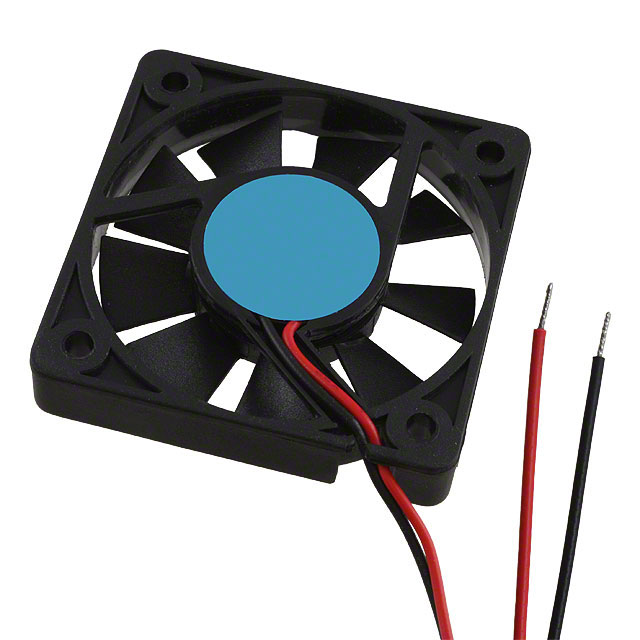

OD5210-12MB
ActiveOrion Fans
FAN AXIAL 52X10MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
OD5210-12MB
ActiveOrion Fans
FAN AXIAL 52X10MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OD5210-12MB |
|---|---|
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 120 mA |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 60000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Noise | 32 dB |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| RPM | 5000 RPM |
| Size / Dimension [x] | 52 mm |
| Size / Dimension [z] | 52 mm |
| Static Pressure | 0.11 in H2O |
| Static Pressure | 27.4 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 17 VDC |
| Voltage Range [Min] | 8 VDC |
| Width [y] | 10 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 11.89 | |
| 10 | $ 11.35 | |||
| 25 | $ 10.68 | |||
| 50 | $ 10.27 | |||
| 100 | $ 9.46 | |||
| 250 | $ 8.85 | |||
| 500 | $ 8.72 | |||
Description
General part information
OD5210 Series
Fan Tubeaxial 12VDC Square - 52mm L x 52mm H Ball 10.0 CFM (0.280m³/min) 2 Wire Leads
Documents
Technical documentation and resources
No documents available
