SCP8RT78HEL1RLS06E

Active

Samsung Semiconductor, Inc.

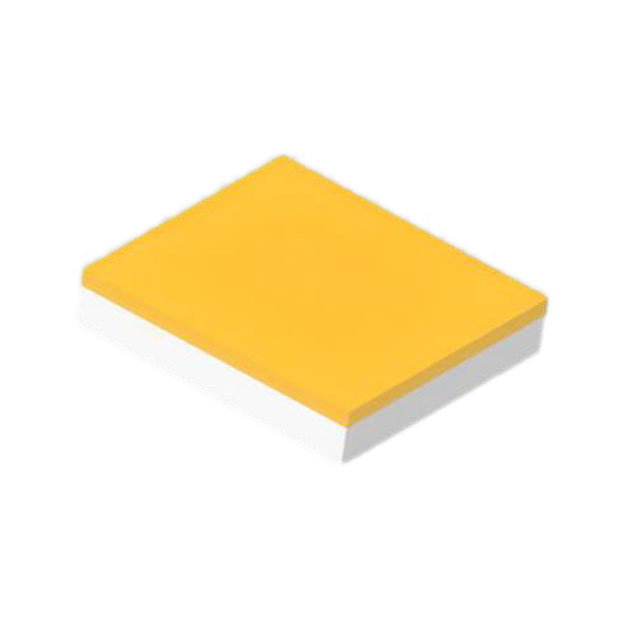

LED LM101B COOL WHITE 5000K SMD

Search across all available documentation for this part.

Active

Samsung Semiconductor, Inc.

LED LM101B COOL WHITE 5000K SMD

Technical Specifications

Parameters and characteristics for this part

Part	Current - Max [Max]	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle	Supplier Device Package	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Current - Test	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	CCT (K)	Flux @ 25°C, Current - Test	Color	Package / Case	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Max]	Height - Seated (Max) [Max] [z]
Samsung Semiconductor, Inc. SCP8RT78HEL1RLS06E	350 mA	80	192 lm/W	2.8 V	120 °	SMD	0.45 mm	0.018 "	65 mA	0606 1616 Metric	Surface Mount	1.7 mm	1.7 mm	0.067 in	0.067 in	5000 K	5-Step MacAdam Ellipse	35 lm	Cool White
Samsung Semiconductor, Inc. SCP8RT78HPL1RUS06E		80	140 lm/W	2.9 V	150 °	SMD	0.45 mm	0.018 "	150 mA	1313 Metric	Surface Mount	1.15 mm	1.15 mm	0.045 "	0.045 in	5000 K			Cool White	0505	55 lm	61 lm	67 lm
Samsung Semiconductor, Inc. SCP8RT78HPL1RLS06E		80	140 lm/W	2.9 V	150 °	SMD		0.017 in	150 mA	1313 Metric	Surface Mount	1.18 mm	1.18 mm	0.046 in	0.046 in	5000 K	5-Step MacAdam Ellipse		Cool White	0505	55 lm	61 lm	67 lm	0.42 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting LM101B White, Cool 5000K 5-Step MacAdam Ellipse 2.8V 65mA 120° 0606 (1616 Metric)

Technical documentation and resources

No documents available
