DLH-22-0008

Active

SCHURTER Inc.

FIXED IND 20UH 7A 12 MOHM TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

FIXED IND 20UH 7A 12 MOHM TH

Technical Specifications

Parameters and characteristics for this part

Specification	DLH-22-0008

Current Rating (Amps)	7 A
DC Resistance (DCR)	12 mOhm
Height - Seated (Max) [Max] [z]	0.945 in
Height - Seated (Max) [Max] [z]	24 mm
Inductance	20 µH
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Horizontal - Corner Terminals
Shielding	Shielded
Size / Dimension [x]	23 mm
Size / Dimension [x]	0.906 in
Size / Dimension [y]	13 mm
Size / Dimension [y]	0.512 in
Tolerance	15 %

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Tolerance	DC Resistance (DCR)	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Current Rating (Amps)	Package / Case
SCHURTER Inc. DLH-22-0008	23 mm	0.906 in	13 mm	0.512 in	0.945 in	24 mm	Through Hole	15 %	12 mOhm	20 µH	125 °C	-40 °C	Shielded	7 A	Radial Horizontal - Corner Terminals
SCHURTER Inc. DLH-22-0001	23 mm	0.906 in	13 mm	0.512 in	0.945 in	24 mm	Through Hole	15 %	2.6 Ohm	5 mH	125 °C	-40 °C	Shielded	450 mA	Radial Horizontal - Corner Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

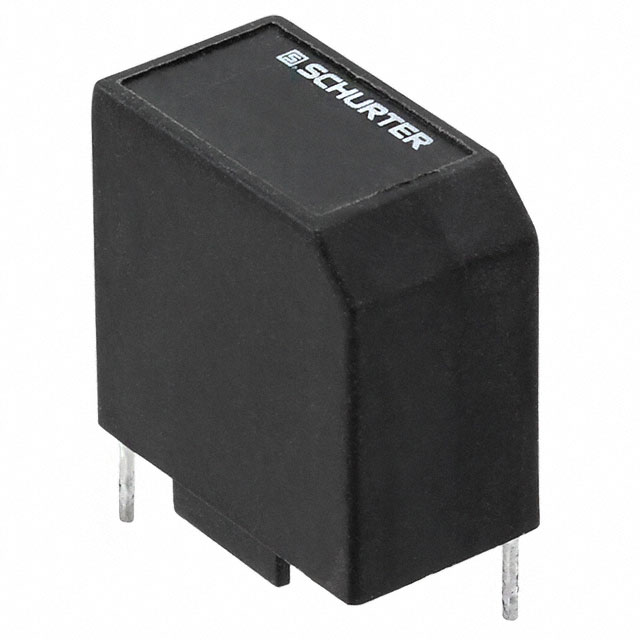

20 µH Shielded Inductor 7 A 12mOhm Radial, Horizontal - Corner Terminals
