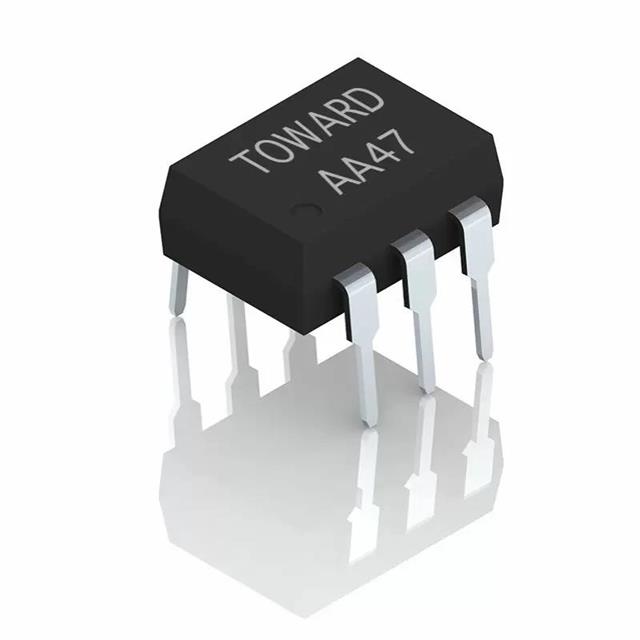

AA47-PA
ActiveBright Toward Industrial Co., Ltd.
80V 1.5A SSR RELAY 1NA LEAKAGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AA47-PA
ActiveBright Toward Industrial Co., Ltd.
80V 1.5A SSR RELAY 1NA LEAKAGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AA47-PA |
|---|---|
| Load Current | 1.5 A |
| Mounting Type | Through Hole |
| On-State Resistance (Max) | 160 mOhms |
| Output Type | DC, AC |
| Package / Case | 6-DIP |
| Package / Case | 0.3 in |
| Package / Case | 7.62 mm |
| Supplier Device Package | 6-DIP |
| Termination Style | PC Pin |
| Voltage - Input | 1.37 VDC |
| Voltage - Load [Max] | 80 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.67 | |
| 10 | $ 5.83 | |||
| 25 | $ 5.52 | |||
| 50 | $ 5.30 | |||
| 100 | $ 5.09 | |||
| 250 | $ 4.83 | |||
| 500 | $ 4.63 | |||
| 1000 | $ 4.45 | |||
Description
General part information
AA47 Series
Solid State SPST-NO (1 Form A) 6-DIP (0.300", 7.62mm)
