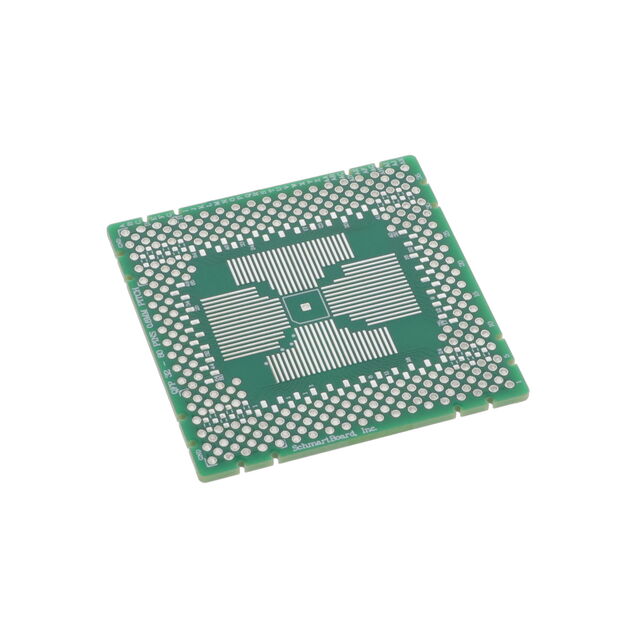

202-0009-02

Active

Schmartboard, Inc.

QFP, 32 - 64 PINS 0.8MM PITCH, 2

Search across all available documentation for this part.

Active

Schmartboard, Inc.

QFP, 32 - 64 PINS 0.8MM PITCH, 2

Technical Specifications

Parameters and characteristics for this part

Specification	202-0009-02

Number of Positions	80
Package Accepted	TQFP, QFP, PQFP
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Proto Board Type	SMD to Plated Through Hole Board
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm

Part	Package Accepted	Proto Board Type	Pitch [x]	Pitch [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Positions
Schmartboard, Inc. 202-0009-02	PQFP QFP TQFP	SMD to Plated Through Hole Board	0.8 mm	0.031 in	2 in	50.8 mm	50.8 mm	2 in	80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.00

General part information

QFP, 32 - 64 PINS 0.8MM PITCH, 2

Technical documentation and resources
