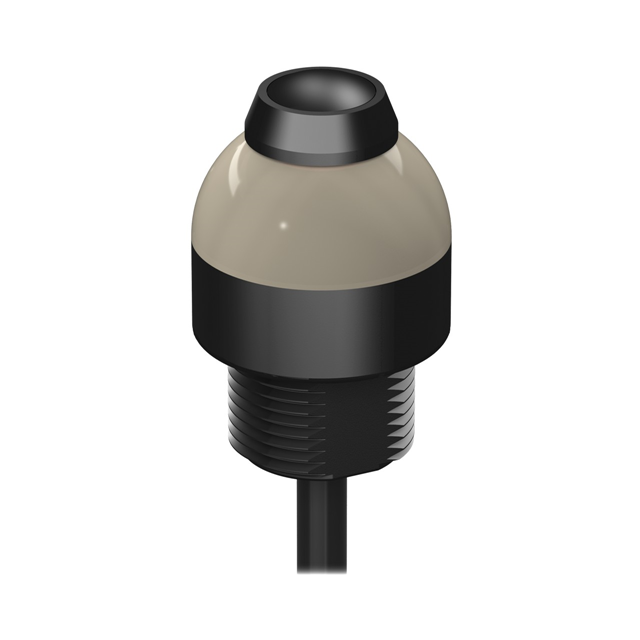

K30LGRXPPB2

Active

BANNER ENGINEERING

K30L SERIES EZ-LIGHT: 2-COLOR INDICATOR WITH DRY CONTACT SWITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

K30LGRXPPB2

Active

BANNER ENGINEERING

K30L SERIES EZ-LIGHT: 2-COLOR INDICATOR WITH DRY CONTACT SWITCH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K30LGRXPPB2

Actuator Marking	No Marking
Actuator Type	Domed, Round, Button
Circuit	SPST-NO
Current Rating (Amps)	150 mA
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	30 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	Off-Mom
Termination Style	Cable Leads
Type	Illuminated, Standard
Voltage Rating - DC	30 V

K30LGR Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Color	Operating Temperature [Min]	Operating Temperature [Max]	Type	Termination Style	Function - Lighting	Number of Stacks	Ingress Protection	Function - Audible	Actuator Type	Actuator Marking	Panel Cutout Dimensions [diameter]	Switch Function	Voltage Rating - DC	Illumination Type, Color	Illumination Voltage (Nominal)	Current Rating (Amps)	Mounting Type	Circuit
BANNER ENGINEERING K30LGRBP	30 VDC	10 VDC	Blue Green Red	-40 °C	50 °C	Complete Unit	Cable with Connector	Steady	3	IP67 IP69K	Multiple
BANNER ENGINEERING K30LGRYP	30 VDC	10 VDC	Green Red Yellow	-40 °C	50 °C	Complete Unit	Wire Leads	Steady	3	IP67 IP69K	Multiple
BANNER ENGINEERING K30LGRXPPB2				-40 °C	50 °C	Illuminated Standard	Cable Leads			IP67 - Dust Tight Waterproof		Button Domed Round	No Marking	22 mm	Off-Mom	30 V	Green/Red LED	30 VDC	150 mA	Panel Mount Front	SPST-NO
BANNER ENGINEERING K30LGRYPPB2Q				-40 °C	50 °C	Illuminated Standard	Connector			IP67 - Dust Tight Waterproof		Button Domed Round	No Marking	22 mm	Off-Mom	30 V	Green LED Red Yellow	30 VDC	150 mA	Panel Mount Front	SPST-NO
BANNER ENGINEERING K30LGRX7P	30 VDC	10 VDC	Green Red	-40 °C	50 °C	Complete Unit	Wire Leads	Steady	2	IP67 IP69K
BANNER ENGINEERING K30LGRXPPB2QP				-40 °C	50 °C	Illuminated Standard	Cable with Connector			IP67 - Dust Tight Waterproof		Button Domed Round	No Marking	22 mm	Off-Mom	30 V	Green/Red LED	30 VDC	150 mA	Panel Mount Front	SPST-NO
BANNER ENGINEERING K30LGRYPQP-18467	30 VDC	10 VDC	Green Red Yellow	-40 °C	50 °C	Complete Unit	Cable with Connector	Steady	3	IP67 IP69K
BANNER ENGINEERING K30LGRXN-805784	30 VDC	10 VDC	Green Red	-40 °C	50 °C	Complete Unit	Wire Leads	Steady	2	IP67 IP69K
BANNER ENGINEERING K30LGRBPQP	30 VDC	10 VDC	Blue Green Red	-40 °C	50 °C	Complete Unit	Connector	Steady	3	IP67 IP69K
BANNER ENGINEERING K30LGRXPQ	30 VDC	10 VDC	Green Red	-40 °C	50 °C	Complete Unit	Wire Leads	Steady	2	IP67 IP69K	Multiple

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 99.00
Newark	Each	1	$ 99.00

Description

General part information

K30LGR Series

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
