G371152000

Active

Excelitas Technologies

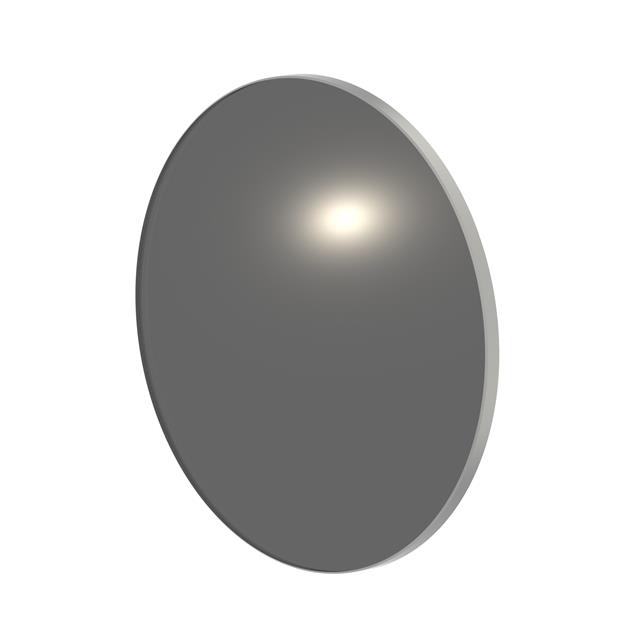

NEUTRAL FILTER; T=10%; D=50

Search across all available documentation for this part.

Active

Excelitas Technologies

NEUTRAL FILTER; T=10%; D=50

Technical Specifications

Parameters and characteristics for this part

Part	Optical Density	Wavelength [Max]	Wavelength [Min]	Optic Diameter [diameter]	Transmission	Clear Aperture
Excelitas Technologies G371150000	0.3	2000 nm	400 nm	50 mm	50 %	48 mm
Excelitas Technologies G371155000	2	2000 nm	400 nm	50 mm	1 %	48 mm
Excelitas Technologies G371152000	1	2000 nm	400 nm	50 mm		48 mm
Excelitas Technologies G371153000	1.3	2000 nm	400 nm	50 mm	5 %	48 mm
Excelitas Technologies G371157000	3	2000 nm	400 nm	50 mm	50 %	48 mm
Excelitas Technologies G371158000	0.4	2000 nm	400 nm	50 mm	40 %	48 mm
Excelitas Technologies G371151000	0.7	2000 nm	400 nm	50 mm	20 %	48 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 114.00

General part information

NEUTRAL FILTER; T=10%; D=50

Technical documentation and resources
