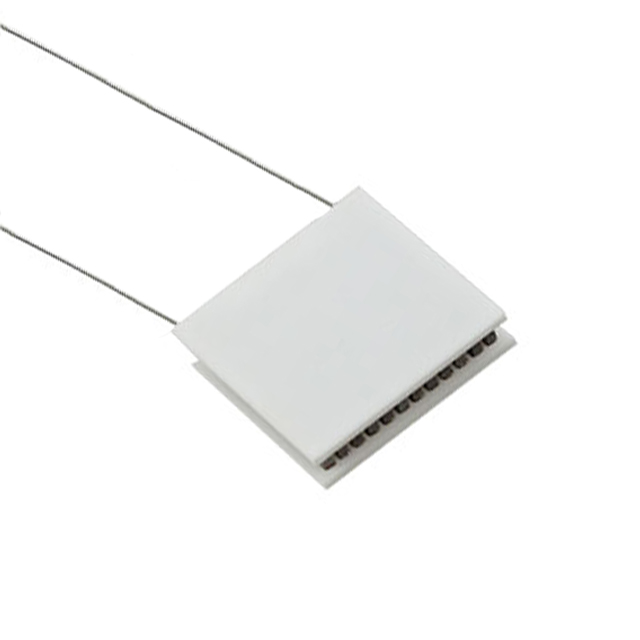

430104-509

Active

Laird Thermal Systems, Inc.

HOT12,65,F2A,1312,TB,W2.29

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

HOT12,65,F2A,1312,TB,W2.29

Technical Specifications

Parameters and characteristics for this part

Part	Delta Tmax @ Th	Voltage - Max [Max]	Number of Stages	Operating Temperature	Height [z]	Features	Qmax @ Th	Current - Max [Max]	Resistance	Size / Dimension [x]	Size / Dimension [y]
Laird Thermal Systems, Inc. 430104-509	67 °C	7.4 V	1	175 °C	2.69 mm	Lead Wires Non-Sealed	5.3 W	1.2 A	5.65 Ohms	13.16 mm	13.16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Peltier Module 5.3W @ 25°C 1.2 A 175°C

Technical documentation and resources
