10140-6000EC - 10140-6000EC

10140-6000EC

Active
3M (TC)

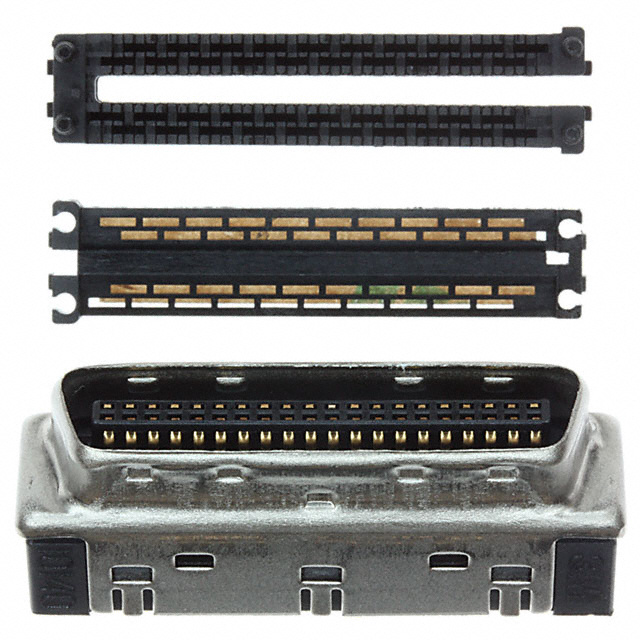

D SUB CONNECTOR, 40 CONTACTS, PLUG, IDC / IDT, MDR 101 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

Documents103 Series MDR Connector Selection GuideDatasheet+3
10140-6000EC - 10140-6000EC

10140-6000EC

Active
3M (TC)

D SUB CONNECTOR, 40 CONTACTS, PLUG, IDC / IDT, MDR 101 SERIES, STEEL BODY

Deep-Dive with AI

Documents103 Series MDR Connector Selection GuideDatasheet+3

Technical Specifications

Parameters and characteristics for this part

Specification10140-6000EC
Connector StyleCenter Strip Contacts
Connector TypePlug
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
FeaturesShielded
Mounting TypeFree Hanging (In-Line)
Number of Positions40
Number of Rows2
TerminationIDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 9.13
10$ 7.76
25$ 7.28
50$ 6.93
100$ 6.60
300$ 6.11
500$ 5.89
1000$ 5.61
NewarkEach 100$ 8.50
250$ 7.60
500$ 7.17
1000$ 6.27

Description

General part information

10140 Series

The 101 series 0.05-inch Mini D Ribbon (MDR) Connector with IDC wire-mount shielded plug. It has beryllium copper contact with 30-micro-inch minimum gold wiping area and nickel under-plate plating.
