EC3SBW-48S15

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 15V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

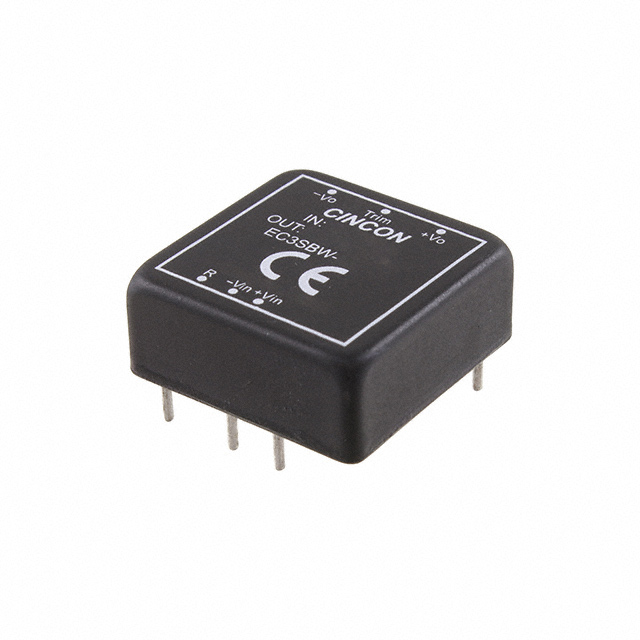

EC3SBW-48S15

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 15V 15W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC3SBW-48S15

Applications	ITE (Commercial)
Approval Agency	CE
Control Features	Active High, Enable
Current - Output (Max) [Max]	1 A
Efficiency	87 %
Features	OVP, UVLO, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	15 W
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V

EC3SB Series

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Voltage - Input (Max) [Max]	Applications	Voltage - Output 1	Current - Output (Max) [Max]	Approval Agency	Voltage - Input (Min) [Min]	Power (Watts)	Control Features	Features	Package / Case	Number of Outputs	Type	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Efficiency	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Cincon Electronics Co. LTD EC3SBW-24S12	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Through Hole	36 V	ITE (Commercial)	12 V	1.25 A	CE	9 V	15 W	Active High Enable	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	1	Isolated Module	60950-1	85 °C	-40 °C	1.5 kV	87 %
Cincon Electronics Co. LTD EC3SB-12D12	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Through Hole	18 V	ITE (Commercial)	12 V		CE	9 V	15 W	Active High Enable	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	2	Isolated Module	60950-1	105 C	-40 °C	1.5 kV	87 %	-12 V	625 mA	625 mA
Cincon Electronics Co. LTD EC3SB-24S12	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Through Hole	36 V	ITE (Commercial)	12 V	1.25 A	CE	18 V	15 W	Active High Enable	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	1	Isolated Module	60950-1	105 C	-40 °C	1.5 kV	90 %
Cincon Electronics Co. LTD EC3SBW-24S05	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Through Hole	36 V	ITE (Commercial)	5 V	3 A	CE	9 V	15 W	Active High Enable	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	1	Isolated Module	60950-1	85 °C	-40 °C	1.5 kV	87 %
Cincon Electronics Co. LTD EC3SBW-48D12	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Through Hole	75 V	ITE (Commercial)	12 V		CE	18 V	15 W	Active High Enable	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	2	Isolated Module	60950-1	85 °C	-40 °C	1.5 kV	87 %	-12 V	625 mA	625 mA
Cincon Electronics Co. LTD EC3SB-12D05	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Through Hole	18 V	ITE (Commercial)	5 V		CE	9 V	15 W	Active High Enable	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	2	Isolated Module	60950-1	105 C	-40 °C	1.5 kV	85 %	-5 V	1.5 A	1.5 A
Cincon Electronics Co. LTD EC3SB-48S33	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Through Hole	75 V	ITE (Commercial)	3.3 V	4 A	CE	36 V	13 W	Active High Enable	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	1	Isolated Module	60950-1	105 C	-40 °C	1.5 kV	86 %
Cincon Electronics Co. LTD EC3SBW-24D05	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Through Hole	36 V	ITE (Commercial)	5 V		CE	9 V	15 W	Active High Enable	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	2	Isolated Module	60950-1	85 °C	-40 °C	1.5 kV	85 %	-5 V	1.5 A	1.5 A
Cincon Electronics Co. LTD EC3SB-12S33S	0.36 in	25.4 mm	1 in	25.4 mm	25.4 mm	9.2 mm	Surface Mount	18 V	ITE (Commercial)	3.3 V	4 A	CE	9 V	13 W	Active High Enable	OCP OVP Remote On/Off SCP UVLO	6-SMD Module	1	Isolated Module	60950-1	105 C	-40 °C	1.5 kV	85 %
Cincon Electronics Co. LTD EC3SBW-48S15	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Through Hole	75 V	ITE (Commercial)	15 V	1 A	CE	18 V	15 W	Active High Enable	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	1	Isolated Module	60950-1	85 °C	-40 °C	1.5 kV	87 %
