82-5588
ObsoleteAmphenol RF

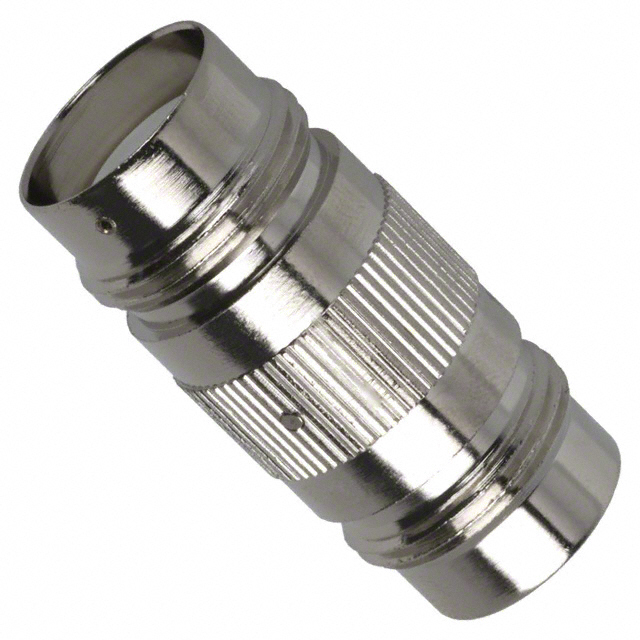

CONN ADAPT JACK-JACK TWINAXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
82-5588
ObsoleteAmphenol RF
CONN ADAPT JACK-JACK TWINAXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 82-5588 |
|---|---|
| Adapter Series | Twinaxial to Twinaxial |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Twinaxial Jack, Female Socket |
| Convert To (Adapter End) | Twinaxial Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Impedance | Non-Constant |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
82-558 Series
| Part | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Style | Convert To (Adapter End) | Mounting Type | Conversion Type | Frequency - Max [Max] | Adapter Series | Center Gender | Convert From (Adapter End) | Body Finish | Center Contact Plating | Impedance | Center Contact Material | Adapter Type | Cable Group | Shield Termination | Connector Style | Includes | Ingress Protection | Housing Color | Contact Termination | Voltage Rating | Number of Ports | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Straight | Female Socket Twinaxial Jack | Free Hanging (In-Line) | Same Series | 11 GHz | Twinaxial to Twinaxial | Female to Female | Twinaxial Jack Female Socket | Nickel | Gold | Non-Constant | Phosphor Bronze | Jack to Jack | ||||||||||
Amphenol RF | Polybutylene Terephthalate (PBT) | Brass | Free Hanging (In-Line) | Nickel | Gold | Non-Constant | Brass | 9207 AA-6026 AA6076 AA6079 Belden 8227 | Clamp | N Type Twinaxial | 1 Braid Clamp 1 Clamp 1 Connector 1 Gasket 1 Insulator 1 Sleeve 2 Contacts | Weatherproof | Silver | Solder | 500 V | 1 | Male Pin Plug | ||||||||||
Amphenol RF | Brass | Free Hanging (In-Line) | Nickel | Gold | Non-Constant | Beryllium Copper Brass | 9207 AA-6026 AA6076 AA6079 Belden 8227 | Clamp | N Type Twinaxial | 1 Braid Clamp 1 Clamp 1 Connector 1 Gasket 1 Insulator 1 Sleeve 2 Contacts | Weatherproof | Silver | Solder | 500 V | 1 | Male Pin Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
82-558 Series
Adapter Coaxial Connector Twinaxial Jack, Female Socket To Twinaxial Jack, Female Socket Non-Constant
